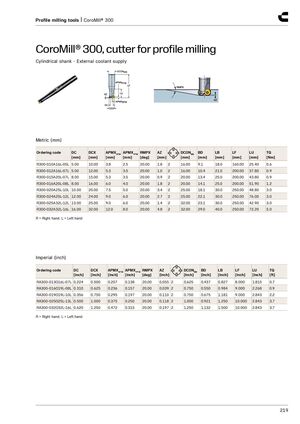

CoroMill® 300, cutter for profile milling
Cylindrical shank - External coolant supply
Metric (mm)
| Ordering code | DC [mm] | DCX [mm] | APMXEF [mm] | W APMXFFW [mm] | RMPX [deg] | AZ [mm] | DCONMS [mm] | BD [mm] | LB [mm] | LF [mm] | LU [mm] | TQ [Nm] | |
| R300-010A16L-05L | 5.00 | 10.00 | 3.8 | 2.5 | 20.00 | 1.8 | 2 | 16.00 | 9.1 | 18.0 | 160.00 | 25.40 | 0.6 |
| R300-012A16L-07L | 5.00 | 12.00 | 5.3 | 3.5 | 20.00 | 1.0 | 2 | 16.00 | 10.4 | 21.0 | 200.00 | 37.80 | 0.9 |
| R300-015A20L-07L | 8.00 | 15.00 | 5.3 | 3.5 | 20.00 | 0.9 | 2 | 20.00 | 13.4 | 25.0 | 200.00 | 43.80 | 0.9 |
| R300-016A20L-08L | 8.00 | 16.00 | 6.0 | 4.0 | 20.00 | 1.8 | 2 | 20.00 | 14.1 | 25.0 | 200.00 | 51.90 | 1.2 |
| R300-020A25L-10L | 10.00 | 20.00 | 7.5 | 5.0 | 20.00 | 3.4 | 2 | 25.00 | 18.1 | 30.0 | 250.00 | 48.80 | 3.0 |
| R300-024A25L-12L | 12.00 | 24.00 | 9.0 | 6.0 | 20.00 | 2.7 | 2 | 25.00 | 22.1 | 30.0 | 250.00 | 76.00 | 3.0 |
| R300-025A32L-12L | 13.00 | 25.00 | 9.0 | 6.0 | 20.00 | 1.4 | 2 | 32.00 | 23.1 | 30.0 | 250.00 | 42.90 | 3.0 |
| R300-032A32L-16L | 16.00 | 32.00 | 12.0 | 8.0 | 20.00 | 4.8 | 2 | 32.00 | 29.0 | 40.0 | 250.00 | 72.20 | 5.0 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | DC [inch] | DCX [inch] | APMXEFW [inch] | APMXFFW [inch] | RMPX [deg] | AZ [inch] | DCONMS [inch] | BD [inch] | LB [inch] | LF [inch] | LU [inch] | TQ [ft] | |
| RA300-013O16L-07L | 0.224 | 0.500 | 0.207 | 0.138 | 20.00 | 0.055 | 2 | 0.625 | 0.437 | 0.827 | 8.000 | 1.815 | 0.7 |
| RA300-016O19L-08L | 0.310 | 0.625 | 0.236 | 0.157 | 20.00 | 0.039 | 2 | 0.750 | 0.550 | 0.984 | 9.000 | 2.268 | 0.9 |
| RA300-019O19L-10L | 0.356 | 0.750 | 0.295 | 0.197 | 20.00 | 0.110 | 2 | 0.750 | 0.675 | 1.181 | 9.000 | 2.843 | 2.2 |
| RA300-025O25L-13L | 0.500 | 1.000 | 0.375 | 0.250 | 20.00 | 0.118 | 2 | 1.000 | 0.921 | 1.250 | 10.000 | 2.843 | 3.7 |
| RA300-032O32L-16L | 0.620 | 1.250 | 0.472 | 0.315 | 20.00 | 0.197 | 2 | 1.250 | 1.132 | 1.500 | 10.000 | 2.843 | 3.7 |
R = Right hand, L = Left hand
