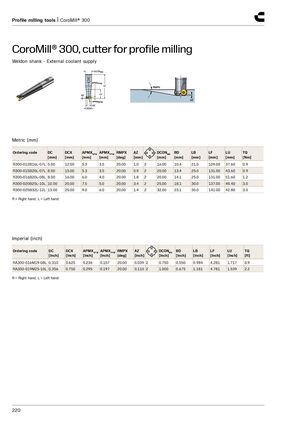

CoroMill® 300, cutter for profile milling
Weldon shank - External coolant supply
Metric (mm)
| Ordering code | DC [mm] | DCX [mm] | APMXEF [mm] | W APMXFFW [mm] | RMPX [deg] | AZ [mm] | DCONMS [mm] | BD [mm] | LB [mm] | LF [mm] | LU [mm] | TQ [Nm] | |
| R300-012B16L-07L | 5.00 | 12.00 | 5.3 | 3.5 | 20.00 | 1.0 | 2 | 16.00 | 10.4 | 21.0 | 109.00 | 37.60 | 0.9 |
| R300-015B20L-07L | 8.00 | 15.00 | 5.3 | 3.5 | 20.00 | 0.9 | 2 | 20.00 | 13.4 | 25.0 | 131.00 | 43.60 | 0.9 |
| R300-016B20L-08L | 8.00 | 16.00 | 6.0 | 4.0 | 20.00 | 1.8 | 2 | 20.00 | 14.1 | 25.0 | 131.00 | 51.60 | 1.2 |
| R300-020B25L-10L | 10.00 | 20.00 | 7.5 | 5.0 | 20.00 | 3.4 | 2 | 25.00 | 18.1 | 30.0 | 137.00 | 48.40 | 3.0 |
| R300-025B32L-12L | 13.00 | 25.00 | 9.0 | 6.0 | 20.00 | 1.4 | 2 | 32.00 | 23.1 | 30.0 | 141.00 | 42.80 | 3.0 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | DC | DCX | APMXEF | W APMXFFW | RMPX | AZ | DCONMS | BD | LB | LF | LU | TQ |
| [inch] | [inch] | [inch] | [inch] | [deg] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [ft] | |
| RA300-016M19-08L | 0.310 | 0.625 | 0.236 | 0.157 | 20.00 | 0.039 | 2 0.750 | 0.550 | 0.984 | 4.281 | 1.717 | 0.9 |
| RA300-019M25-10L | 0.356 | 0.750 | 0.295 | 0.197 | 20.00 | 0.110 | 2 1.000 | 0.675 | 1.181 | 4.781 | 1.539 | 2.2 |
R = Right hand, L = Left hand
