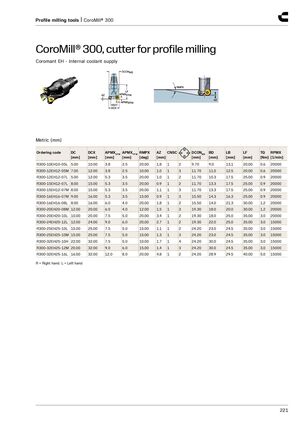

CoroMill® 300, cutter for profile milling
Coromant EH - Internal coolant supply
Metric (mm)
| Ordering code | DC [mm] | DCX [mm] | APMXEF [mm] | W APMXFFW [mm] | RMPX [deg] | AZ [mm] | CNS | C | DCONMS [mm] | BD [mm] | LB [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] |
| R300-10EH10-05L | 5.00 | 10.00 | 3.8 | 2.5 | 20.00 | 1.8 | 1 | 2 | 9.70 | 9.0 | 13.1 | 20.00 | 0.6 | 20000 |
| R300-12EH12-05M | 7.00 | 12.00 | 3.8 | 2.5 | 10.00 | 1.0 | 1 | 3 | 11.70 | 11.0 | 12.5 | 20.00 | 0.6 | 20000 |
| R300-12EH12-07L | 5.00 | 12.00 | 5.3 | 3.5 | 20.00 | 1.0 | 1 | 2 | 11.70 | 10.3 | 17.5 | 25.00 | 0.9 | 20000 |
| R300-15EH12-07L | 8.00 | 15.00 | 5.3 | 3.5 | 20.00 | 0.9 | 1 | 2 | 11.70 | 13.3 | 17.5 | 25.00 | 0.9 | 20000 |
| R300-15EH12-07M | 8.00 | 15.00 | 5.3 | 3.5 | 20.00 | 1.1 | 1 | 3 | 11.70 | 13.3 | 17.5 | 25.00 | 0.9 | 20000 |
| R300-16EH16-07M | 9.00 | 16.00 | 5.3 | 3.5 | 15.00 | 0.9 | 1 | 3 | 15.50 | 14.3 | 16.3 | 25.00 | 0.9 | 20000 |
| R300-16EH16-08L | 8.00 | 16.00 | 6.0 | 4.0 | 20.00 | 1.8 | 1 | 2 | 15.50 | 14.0 | 21.3 | 30.00 | 1.2 | 20000 |
| R300-20EH20-08M | 12.00 | 20.00 | 6.0 | 4.0 | 12.00 | 1.5 | 1 | 3 | 19.30 | 18.0 | 20.0 | 30.00 | 1.2 | 20000 |
| R300-20EH20-10L | 10.00 | 20.00 | 7.5 | 5.0 | 20.00 | 3.4 | 1 | 2 | 19.30 | 18.0 | 25.0 | 35.00 | 3.0 | 20000 |
| R300-24EH20-12L | 12.00 | 24.00 | 9.0 | 6.0 | 20.00 | 2.7 | 1 | 2 | 19.30 | 22.0 | 25.0 | 35.00 | 3.0 | 15000 |
| R300-25EH25-10L | 15.00 | 25.00 | 7.5 | 5.0 | 15.00 | 1.1 | 1 | 2 | 24.20 | 23.0 | 24.5 | 35.00 | 3.0 | 15000 |
| R300-25EH25-10M | 15.00 | 25.00 | 7.5 | 5.0 | 15.00 | 1.3 | 1 | 3 | 24.20 | 23.0 | 24.5 | 35.00 | 3.0 | 15000 |
| R300-32EH25-10H | 22.00 | 32.00 | 7.5 | 5.0 | 10.00 | 1.7 | 1 | 4 | 24.20 | 30.0 | 24.5 | 35.00 | 3.0 | 15000 |
| R300-32EH25-12M | 20.00 | 32.00 | 9.0 | 6.0 | 15.00 | 1.4 | 1 | 3 | 24.20 | 30.0 | 24.5 | 35.00 | 3.0 | 15000 |
| R300-32EH25-16L | 16.00 | 32.00 | 12.0 | 8.0 | 20.00 | 4.8 | 1 | 2 | 24.20 | 28.9 | 29.5 | 40.00 | 5.0 | 15000 |
R = Right hand, L = Left hand
