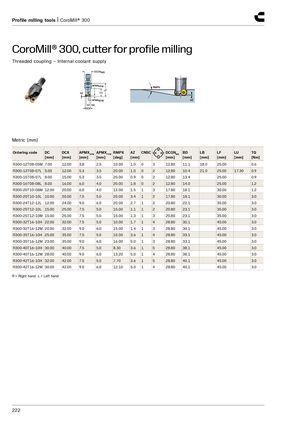

CoroMill® 300, cutter for profile milling
Threaded coupling – Internal coolant supply
Metric (mm)
| Ordering code | DC [mm] | DCX [mm] | APMXEFW [mm] | APMXFFW [mm] | RMPX [deg] | AZ [mm] | CNS | C | DCONMS [mm] | BD [mm] | LB [mm] | LF [mm] | LU [mm] | TQ [Nm] |
| R300-12T08-05M | 7.00 | 12.00 | 3.8 | 2.5 | 10.00 | 1.0 | 0 | 3 | 12.80 | 11.1 | 18.0 | 25.00 | 0.6 | |
| R300-12T08-07L | 5.00 | 12.00 | 5.3 | 3.5 | 20.00 | 1.0 | 0 | 2 | 12.80 | 10.4 | 21.0 | 25.00 | 17.30 | 0.9 |
| R300-15T08-07L | 8.00 | 15.00 | 5.3 | 3.5 | 20.00 | 0.9 | 0 | 2 | 12.80 | 13.4 | 25.00 | 0.9 | ||
| R300-16T08-08L | 8.00 | 16.00 | 6.0 | 4.0 | 20.00 | 1.8 | 0 | 2 | 12.80 | 14.0 | 25.00 | 1.2 | ||
| R300-20T10-08M | 12.00 | 20.00 | 6.0 | 4.0 | 12.00 | 1.5 | 1 | 3 | 17.80 | 18.1 | 30.00 | 1.2 | ||
| R300-20T10-10L | 10.00 | 20.00 | 7.5 | 5.0 | 20.00 | 3.4 | 1 | 2 | 17.80 | 18.1 | 30.00 | 3.0 | ||
| R300-24T12-12L | 12.00 | 24.00 | 9.0 | 6.0 | 20.00 | 2.7 | 1 | 2 | 20.80 | 22.1 | 35.00 | 3.0 | ||
| R300-25T12-10L | 15.00 | 25.00 | 7.5 | 5.0 | 15.00 | 1.1 | 1 | 2 | 20.80 | 23.1 | 35.00 | 3.0 | ||
| R300-25T12-10M | 15.00 | 25.00 | 7.5 | 5.0 | 15.00 | 1.3 | 1 | 3 | 20.80 | 23.1 | 35.00 | 3.0 | ||
| R300-32T16-10H | 22.00 | 32.00 | 7.5 | 5.0 | 10.00 | 1.7 | 1 | 4 | 28.80 | 30.1 | 45.00 | 3.0 | ||
| R300-32T16-12M | 20.00 | 32.00 | 9.0 | 6.0 | 15.00 | 1.4 | 1 | 3 | 28.80 | 30.1 | 45.00 | 3.0 | ||
| R300-35T16-10H | 25.00 | 35.00 | 7.5 | 5.0 | 10.00 | 3.6 | 1 | 4 | 28.80 | 33.1 | 45.00 | 3.0 | ||
| R300-35T16-12M | 23.00 | 35.00 | 9.0 | 6.0 | 16.00 | 5.0 | 1 | 3 | 28.80 | 33.1 | 45.00 | 3.0 | ||
| R300-40T16-10H | 30.00 | 40.00 | 7.5 | 5.0 | 8.30 | 3.6 | 1 | 5 | 28.80 | 38.1 | 45.00 | 3.0 | ||
| R300-40T16-12M | 28.00 | 40.00 | 9.0 | 6.0 | 13.20 | 5.0 | 1 | 4 | 28.80 | 38.1 | 45.00 | 3.0 | ||
| R300-42T16-10H | 32.00 | 42.00 | 7.5 | 5.0 | 7.70 | 3.6 | 1 | 5 | 28.80 | 40.1 | 45.00 | 3.0 | ||
| R300-42T16-12M | 30.00 | 42.00 | 9.0 | 6.0 | 12.10 | 5.0 | 1 | 4 | 28.80 | 40.1 | 45.00 | 3.0 |
R = Right hand, L = Left hand
