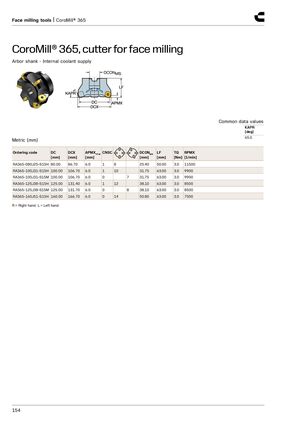

CoroMill® 365, cutter for face milling
Arbor shank - Internal coolant supply
Common data values
| Metric (mm) | KAPR [deg] 65.0 | ||||||||||
| Ordering code | DC [mm] | DCX [mm] | APMXFFW [mm] | CNSC | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | |||
| RA365-080J25-S15H | 80.00 | 86.70 | 6.0 | 1 | 8 | 25.40 | 50.00 | 3.0 | 11500 | ||
| RA365-100J31-S15H | 100.00 | 106.70 | 6.0 | 1 | 10 | 31.75 | 63.00 | 3.0 | 9900 | ||
| RA365-100J31-S15M | 100.00 | 106.70 | 6.0 | 0 | 7 | 31.75 | 63.00 | 3.0 | 9900 | ||
| RA365-125J38-S15H | 125.00 | 131.40 | 6.0 | 1 | 12 | 38.10 | 63.00 | 3.0 | 8500 | ||
| RA365-125J38-S15M | 125.00 | 131.70 | 6.0 | 0 | 8 | 38.10 | 63.00 | 3.0 | 8500 | ||
| RA365-160J51-S15H | 160.00 | 166.70 | 6.0 | 0 | 14 | 50.80 | 63.00 | 3.0 | 7500 |
R = Right hand, L = Left hand
