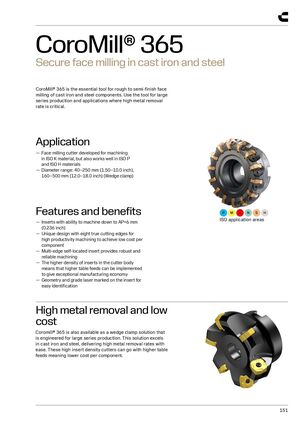

CoroMill® 365 Secure face milling in cast iron and steel CoroMill® 365 is the essential tool for rough to semi-finish face milling of cast iron and steel components. Use the tool for large series production and applications where high metal removal rate is critical. Application — Face milling cutter developed for machining in ISO K material, but also works well in ISO P and ISO H materials — Diameter range: 40–250 mm (1.50–10.0 inch), 160–500 mm (12.0–18.0 inch) (Wedge clamp) Features and benefits ISO application areas — Inserts with ability to machine down to AP=6 mm (0.236 inch) — Unique design with eight true cutting edges for high productivity machining to achieve low cost per component — Multi-edge self-located insert provides robust and reliable machining — The higher density of inserts in the cutter body means that higher table feeds can be implemented to give exceptional manufacturing economy — Geometry and grade laser marked on the insert for easy identification High metal removal and low cost Coromill® 365 is also available as a wedge clamp solution that is engineered for large series production. This solution excels in cast iron and steel, delivering high metal removal rates with ease. These high insert density cutters can go with higher table feeds meaning lower cost per component. 151
