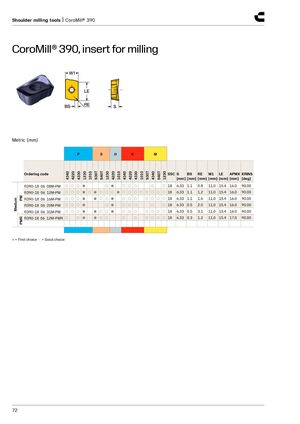

Shoulder milling tools | CoroMill® 390 CoroMill® 390, insert for milling Metric (mm) P S H K M S30T S40T S30T S40T 4340 4220 4330 1230 1010 1230 4220 1010 4340 4220 4330 1010 4340 1230 Ordering code SSC S BS RE W1 LE APMX KRINS [mm] [mm] [mm] [mm] [mm] [mm] [deg] R390-18 06 08M-PM ○○○● ○● ○○○ ○ ○ 18 6.33 1.1 0.8 11.0 15.4 16.0 90.00 R390-18 06 12M-PM ○ ○ ○ ● ○ ● ○ ○ ○ ● ○ ○ ○ ○ ○ ○ ○ ○ 18 6.33 1.1 1.2 11.0 15.4 16.0 90.00 R390-18 06 16M-PM ○ ○ ○ ● ● ○ ○ ● ○ ○ ○ ○ ○ ○ ○ 18 PM 6.33 1.1 1.6 11.0 15.4 16.0 90.00 Medium R390-18 06 20M-PM ○ ○ ○ ● ○● ○○○ ○ ○ 18 6.33 0.5 2.0 11.0 15.4 16.0 90.00 R390-18 06 31M-PM ○ ○ ○ ● ● ○ ○ ● ○ ○ ○ ○ ○ ○ ○ 18 6.33 0.5 3.1 11.0 15.4 16.0 90.00 R390-18 06 12M-PMR ○ ○● ●○○ ○ ○ ○ ○ ○ ○ 18 6.33 0.3 1.2 11.0 15.4 17.0 90.00 PMR ● = First choice ○ = Good choice 72
