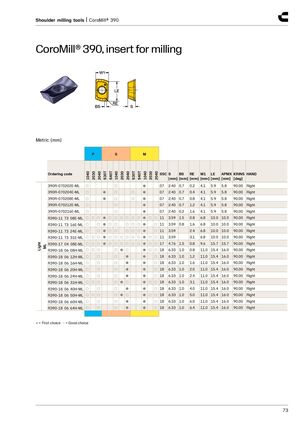

CoroMill® 390, insert for milling
Metric (mm)
| P | S | M | ||||||||||||||
| Ordering code | 1040 2030 2040 | S30T | S40T | 1040 | 2030 2040 S30T | S40T 1040 | 2030 | 2040 SSC | S [mm] | BS [mm | ] RE [mm] | W1 [mm] | LE [mm] | APMX [mm] | KRINS [deg] | HAND |
| 390R-070202E-ML | ○ | ○ | ● | 07 | 2.40 | 0.7 | 0.2 | 4.1 | 5.9 | 5.8 | 90.00 | Right | ||||
| 390R-070204E-ML | ○ | ● | ○ | ○ | ● | 07 | 2.40 | 0.7 | 0.4 | 4.1 | 5.9 | 5.8 | 90.00 | Right | ||
| 390R-070208E-ML | ○ | ● | ○ | ○ | ● | 07 | 2.40 | 0.7 | 0.8 | 4.1 | 5.9 | 5.8 | 90.00 | Right | ||
| 390R-070212E-ML | ○ | ○ | ● | 07 | 2.40 | 0.7 | 1.2 | 4.1 | 5.9 | 5.8 | 90.00 | Right | ||||
| 390R-070216E-ML | ○ | ○ | ● | 07 | 2.40 | 0.2 | 1.6 | 4.1 | 5.9 | 5.8 | 90.00 | Right | ||||
| R390-11 T3 08E-ML | ○○○ | ● | ○ | ○ | ○○○ | ○● | ○ | ○11 | 3.59 | 1.5 | 0.8 | 6.8 | 10.0 | 10.0 | 90.00 | Right |
| R390-11 T3 16E-ML | ○ ○ | ● | ○ | ○ | ○○ | ○● | ○11 | 3.59 | 0.8 | 1.6 | 6.8 | 10.0 | 10.0 | 90.00 | Right | |
| R390-11 T3 24E-ML | ○ ○ | ● | ○ | ○ | ○○ | ○● | ○11 | 3.59 | 2.4 | 6.8 | 10.0 | 10.0 | 90.00 | Right | ||
| R390-11 T3 31E-ML | ○○○ | ● | ○ | ○ | ○○○ | ○● | ○ | ○11 | 3.59 | 3.1 | 6.8 | 10.0 | 10.0 | 90.00 | Right | |
| ght L R390-17 04 08E-ML | ○○○ | ● | ○ | ○ | ○○○ | ○● | ○ | ○17 | 4.76 | 1.5 | 0.8 | 9.6 | 15.7 | 15.7 | 90.00 | Right |
| Li M R390-18 06 08H-ML | ○○○ | ○ | ●○ | ● | ○ | ○18 | 6.33 | 1.0 | 0.8 | 11.0 | 15.4 | 16.0 | 90.00 | Right | ||
| R390-18 06 12H-ML | ○ ○ | ○ | ● | ● | ○18 | 6.33 | 1.0 | 1.2 | 11.0 | 15.4 | 16.0 | 90.00 | Right | |||
| R390-18 06 16H-ML | ○ ○ | ○ | ● | ● | ○18 | 6.33 | 1.0 | 1.6 | 11.0 | 15.4 | 16.0 | 90.00 | Right | |||
| R390-18 06 20H-ML | ○ ○ | ○ | ● | ● | ○18 | 6.33 | 1.0 | 2.0 | 11.0 | 15.4 | 16.0 | 90.00 | Right | |||
| R390-18 06 24H-ML | ○ ○ | ○ | ● | ● | ○18 | 6.33 | 1.0 | 2.4 | 11.0 | 15.4 | 16.0 | 90.00 | Right | |||
| R390-18 06 31H-ML | ○○○ | ○ | ●○ | ● | ○ | ○18 | 6.33 | 1.0 | 3.1 | 11.0 | 15.4 | 16.0 | 90.00 | Right | ||
| R390-18 06 40H-ML | ○ ○ | ○ | ● | ● | ○18 | 6.33 | 1.0 | 4.0 | 11.0 | 15.4 | 16.0 | 90.00 | Right | |||
| R390-18 06 50H-ML | ○○○ | ○ | ●○ | ● | ○ | ○18 | 6.33 | 1.0 | 5.0 | 11.0 | 15.4 | 16.0 | 90.00 | Right | ||
| R390-18 06 60H-ML | ○ ○ | ○ | ● | ● | ○18 | 6.33 | 1.0 | 6.0 | 11.0 | 15.4 | 16.0 | 90.00 | Right | |||
| R390-18 06 64H-ML | ○ ○ | ○ | ● | ● | ○18 | 6.33 | 1.0 | 6.4 | 11.0 | 15.4 | 16.0 | 90.00 | Right |
- = First choice = Good choice
