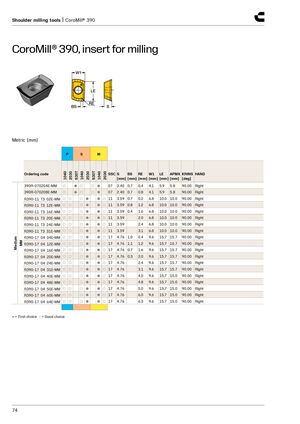

CoroMill® 390, insert for milling
Metric (mm)
| Ordering code | 1040 | P | 2030 | S30T | S 1040 2030 | M S30T 1040 | 2030 SSC | S [mm] | BS [mm] | RE [mm] | W1 [mm] | LE [mm] | APMX [mm] | KRINS [deg] | HAND | |
| 390R-070204E-MM | ○ | ● | ○ | ○● | 07 | 2.40 | 0.7 | 0.4 | 4.1 | 5.9 | 5.8 | 90.00 | Right | |||
| 390R-070208E-MM | ○ | ● | ○ | ○● | 07 | 2.40 | 0.7 | 0.8 | 4.1 | 5.9 | 5.8 | 90.00 | Right | |||
| R390-11 T3 02E-MM | ○ | ○ | ○● | ● | ○11 | 3.59 | 0.7 | 0.2 | 6.8 | 10.0 | 10.0 | 90.00 | Right | |||
| R390-11 T3 12E-MM | ○ | ○ | ○● | ● | ○11 | 3.59 | 0.8 | 1.2 | 6.8 | 10.0 | 10.0 | 90.00 | Right | |||
| R390-11 T3 16E-MM | ○ | ○ | ○● | ● | ○11 | 3.59 | 0.4 | 1.6 | 6.8 | 10.0 | 10.0 | 90.00 | Right | |||
| R390-11 T3 20E-MM | ○ | ○ | ○● | ● | ○11 | 3.59 | 2.0 | 6.8 | 10.0 | 10.0 | 90.00 | Right | ||||
| R390-11 T3 24E-MM | ○ | ○ | ○● | ● | ○11 | 3.59 | 2.4 | 6.8 | 10.0 | 10.0 | 90.00 | Right | ||||
| R390-11 T3 31E-MM | ○ | ○ | ○● | ● | ○11 | 3.59 | 3.1 | 6.8 | 10.0 | 10.0 | 90.00 | Right | ||||
| um | R390-17 04 04E-MM | ○ | ○ | ○● | ● | ○17 | 4.76 | 1.0 | 0.4 | 9.6 | 15.7 | 15.7 | 90.00 | Right | ||
| edi MM | R390-17 04 12E-MM | ○ | ○ | ○● | ● | ○17 | 4.76 | 1.1 | 1.2 | 9.6 | 15.7 | 15.7 | 90.00 | Right | ||
| M | R390-17 04 16E-MM | ○ | ○ | ○● | ● | ○17 | 4.76 | 0.7 | 1.6 | 9.6 | 15.7 | 15.7 | 90.00 | Right | ||
| R390-17 04 20E-MM | ○ | ○ | ○● | ● | ○17 | 4.76 | 0.3 | 2.0 | 9.6 | 15.7 | 15.7 | 90.00 | Right | |||
| R390-17 04 24E-MM | ○ | ○ | ○● | ● | ○17 | 4.76 | 2.4 | 9.6 | 15.7 | 15.7 | 90.00 | Right | ||||
| R390-17 04 31E-MM | ○ | ○ | ○● | ● | ○17 | 4.76 | 3.1 | 9.6 | 15.7 | 15.7 | 90.00 | Right | ||||
| R390-17 04 40E-MM | ○ | ○ | ○● | ● | ○17 | 4.76 | 4.0 | 9.6 | 15.7 | 15.0 | 90.00 | Right | ||||
| R390-17 04 48E-MM | ○ | ○ | ○● | ● | ○17 | 4.76 | 4.8 | 9.6 | 15.7 | 15.0 | 90.00 | Right | ||||
| R390-17 04 50E-MM | ○ | ○ | ○● | ● | ○17 | 4.76 | 5.0 | 9.6 | 15.7 | 15.0 | 90.00 | Right | ||||
| R390-17 04 60E-MM | ○ | ○ | ○● | ● | ○17 | 4.76 | 6.0 | 9.6 | 15.7 | 15.0 | 90.00 | Right | ||||
| R390-17 04 64E-MM | ○ | ○ | ○● | ● | ○17 | 4.76 | 6.3 | 9.6 | 15.7 | 15.0 | 90.00 | Right |
- = First choice = Good choice
