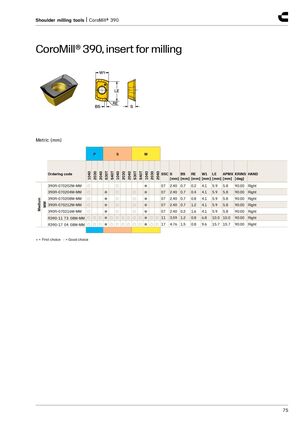

CoroMill® 390, insert for milling
Metric (mm)
| P | S | M | |||||||||||||
| Ordering code | 1040 2030 | 2040 S30T | S40T 1040 | 2030 2040 S30T | S40T 1040 | 2030 2040 SSC | S [mm] | BS [mm] | RE [mm] | W1 [mm] | LE [mm] | APMX [mm] | KRINS [deg] | HAND | |
| 390R-070202M-MM | ○ | ○ | ● | 07 | 2.40 | 0.7 | 0.2 | 4.1 | 5.9 | 5.8 | 90.00 | Right | |||
| 390R-070204M-MM | ○ | ● | ○ | ○ | ● | 07 | 2.40 | 0.7 | 0.4 | 4.1 | 5.9 | 5.8 | 90.00 | Right | |
| m | 390R-070208M-MM | ○ | ● | ○ | ○ | ● | 07 | 2.40 | 0.7 | 0.8 | 4.1 | 5.9 | 5.8 | 90.00 | Right |
| ediu MM | 390R-070212M-MM | ○ | ● | ○ | ○ | ● | 07 | 2.40 | 0.7 | 1.2 | 4.1 | 5.9 | 5.8 | 90.00 | Right |
| M | 390R-070216M-MM | ○ | ● | ○ | ○ | ● | 07 | 2.40 | 0.2 | 1.6 | 4.1 | 5.9 | 5.8 | 90.00 | Right |
| R390-11 T3 08M-MM | ○○ | ○● | ○○ | ○○○ | ○● | ○○11 | 3.59 | 1.2 | 0.8 | 6.8 | 10.0 | 10.0 | 90.00 | Right | |
| R390-17 04 08M-MM | ○○ | ○● | ○○ | ○○○ | ○● | ○○17 | 4.76 | 1.5 | 0.8 | 9.6 | 15.7 | 15.7 | 90.00 | Right |
- = First choice = Good choice
