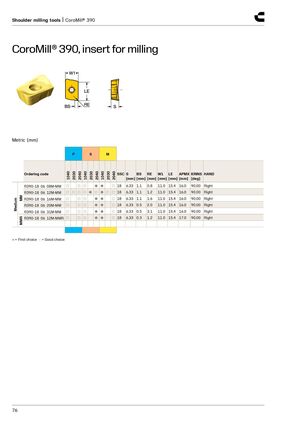

CoroMill® 390, insert for milling
Metric (mm)
| Ordering code | 1040 | P 2030 2040 | S 1040 2030 2040 | 1040 | M 2030 2040 SSC | S [mm] | BS [mm] | RE [mm] | W1 [mm] | LE [mm] | APMX [mm] | KRINS [deg] | HAND | |
| R390-18 06 08M-MM | ○ | ○ | ○ ● | ● | ○18 | 6.33 | 1.1 | 0.8 | 11.0 | 15.4 | 16.0 | 90.00 | Right | |
| R390-18 06 12M-MM | ○ | ○○ | ○●○ | ● | ○○18 | 6.33 | 1.1 | 1.2 | 11.0 | 15.4 | 16.0 | 90.00 | Right | |
| um MM | R390-18 06 16M-MM | ○ | ○ | ○ ● | ● | ○18 | 6.33 | 1.1 | 1.6 | 11.0 | 15.4 | 16.0 | 90.00 | Right |
| edi | R390-18 06 20M-MM | ○ | ○ | ○ ● | ● | ○18 | 6.33 | 0.5 | 2.0 | 11.0 | 15.4 | 16.0 | 90.00 | Right |
| M | R390-18 06 31M-MM | ○ | ○ | ○ ● | ● | ○18 | 6.33 | 0.5 | 3.1 | 11.0 | 15.4 | 16.0 | 90.00 | Right |
| MMR | R390-18 06 12M-MMR | ○ | ○ | ○ ● | ● | ○18 | 6.33 | 0.3 | 1.2 | 11.0 | 15.4 | 17.0 | 90.00 | Right |
- = First choice = Good choice
