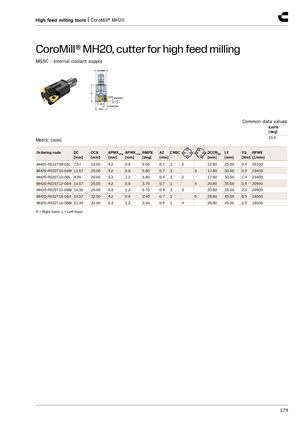

CoroMill® MH20, cutter for high feed milling
MSSC - Internal coolant supply
| Co | mmon d | ata values KAPR [deg] | ||||||||||||
| Metric (mm) | 15.0 | |||||||||||||
| Ordering code | DC [mm] | DCX [mm] | APMXEFW [mm] | APMXFFW [mm] | RMPX [deg] | AZ [mm] | CNS | C | DCONMS [mm] | LF [mm] | TQ [Nm | ] RPMX [1/min] | ||
| MH20-R016T08-06L | 7.57 | 16.00 | 4.2 | 0.8 | 9.50 | 0.7 | 1 | 2 | 12.80 | 25.00 | 0.9 | 26100 | ||
| MH20-R020T10-06M | 11.57 | 20.00 | 4.2 | 0.8 | 5.80 | 0.7 | 1 | 3 | 17.80 | 30.00 | 0.9 | 23400 | ||
| MH20-R020T10-08L | 9.35 | 20.00 | 5.3 | 1.2 | 5.80 | 0.9 | 1 | 2 | 17.80 | 30.00 | 1.4 | 23400 | ||
| MH20-R025T12-06H | 16.57 | 25.00 | 4.2 | 0.8 | 3.70 | 0.7 | 1 | 4 | 20.80 | 35.00 | 0.9 | 20900 | ||
| MH20-R025T12-08M | 14.35 | 25.00 | 5.3 | 1.2 | 5.70 | 0.9 | 1 | 3 | 20.80 | 35.00 | 2.0 | 20900 | ||
| MH20-R032T16-06H | 23.57 | 32.00 | 4.2 | 0.8 | 2.40 | 0.7 | 1 | 5 | 28.80 | 45.00 | 0.9 | 18500 | ||
| MH20-R032T16-08M | 21.35 | 32.00 | 5.3 | 1.2 | 3.60 | 0.9 | 1 | 4 | 28.80 | 45.00 | 2.0 | 18500 |
R = Right hand, L = Left hand
