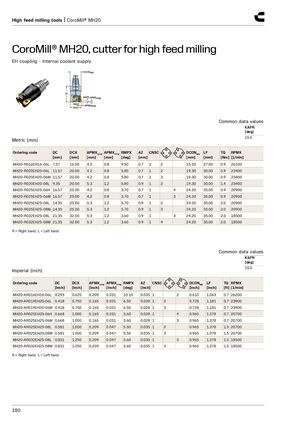

CoroMill® MH20, cutter for high feed milling
EH coupling - Internal coolant supply
Common data values
KAPR [deg] Metric (mm) 15.0
| Ordering code | DC [mm] | DCX [mm] | APMXEF [mm] | W APMXFF [mm] | W RMPX [deg] | AZ [mm] | CNS | C | DCONMS [mm] | LF [mm] | TQ [Nm | ] RPMX [1/min] | |
| MH20-R016EH16-06L | 7.57 | 16.00 | 4.2 | 0.8 | 9.50 | 0.7 | 1 | 2 | 15.50 | 27.00 | 0.9 | 26100 | |
| MH20-R020EH20-06L | 11.57 | 20.00 | 4.2 | 0.8 | 5.80 | 0.7 | 1 | 2 | 19.30 | 30.00 | 0.9 | 23400 | |
| MH20-R020EH20-06M | 11.57 | 20.00 | 4.2 | 0.8 | 5.80 | 0.7 | 1 | 3 | 19.30 | 30.00 | 0.9 | 23400 | |
| MH20-R020EH20-08L | 9.35 | 20.00 | 5.3 | 1.2 | 5.80 | 0.9 | 1 | 2 | 19.30 | 30.00 | 1.4 | 23400 | |
| MH20-R025EH25-06H | 16.57 | 25.00 | 4.2 | 0.8 | 3.70 | 0.7 | 1 | 4 | 24.20 | 35.00 | 0.9 | 20900 | |
| MH20-R025EH25-06M | 16.57 | 25.00 | 4.2 | 0.8 | 3.70 | 0.7 | 1 | 3 | 24.20 | 35.00 | 0.9 | 20900 | |
| MH20-R025EH25-08L | 14.35 | 25.00 | 5.3 | 1.2 | 5.70 | 0.9 | 1 | 2 | 24.20 | 35.00 | 2.0 | 20900 | |
| MH20-R025EH25-08M | 14.35 | 25.00 | 5.3 | 1.2 | 5.70 | 0.9 | 1 | 3 | 24.20 | 35.00 | 2.0 | 20900 | |
| MH20-R032EH25-08L | 21.35 | 32.00 | 5.3 | 1.2 | 3.60 | 0.9 | 1 | 3 | 24.20 | 35.00 | 2.0 | 18500 | |
| MH20-R032EH25-08M | 21.35 | 32.00 | 5.3 | 1.2 | 3.60 | 0.9 | 1 | 4 | 24.20 | 35.00 | 2.0 | 18500 |
R = Right hand, L = Left hand
Common data values
KAPR [deg] Imperial (inch) 15.0
| Ordering code | DC [inch] | DCX [inch] | APMXEF [inch] | W APMXFF [inch] | W RMPX [deg] | AZ [inch] | CNS | C | DCONMS [inch] | LF [inch] | TQ [ft] RPMX [1/min] | |
| MH20-AR016EH16-06L | 0.293 | 0.625 | 0.209 | 0.031 | 10.10 | 0.035 | 1 | 2 | 0.610 | 1.063 | 0.7 26200 | |
| MH20-AR019EH20-06L | 0.418 | 0.750 | 0.165 | 0.031 | 6.50 | 0.028 | 1 | 2 | 0.728 | 1.181 | 0.7 23900 | |
| MH20-AR019EH20-06M | 0.418 | 0.750 | 0.165 | 0.031 | 6.50 | 0.028 | 1 | 3 | 0.728 | 1.181 | 0.7 23900 | |
| MH20-AR025EH25-06H | 0.668 | 1.000 | 0.165 | 0.031 | 3.60 | 0.028 | 1 | 4 | 0.965 | 1.378 | 0.7 20700 | |
| MH20-AR025EH25-06M | 0.668 | 1.000 | 0.165 | 0.031 | 3.60 | 0.028 | 1 | 3 | 0.965 | 1.378 | 0.7 20700 | |
| MH20-AR025EH25-08L | 0.581 | 1.000 | 0.209 | 0.047 | 5.50 | 0.035 | 1 | 2 | 0.965 | 1.378 | 1.5 20700 | |
| MH20-AR025EH25-08M | 0.581 | 1.000 | 0.209 | 0.047 | 5.50 | 0.035 | 1 | 3 | 0.965 | 1.378 | 1.5 20700 | |
| MH20-AR032EH25-08L | 0.831 | 1.250 | 0.209 | 0.047 | 3.60 | 0.035 | 1 | 3 | 0.965 | 1.378 | 1.5 18500 | |
| MH20-AR032EH25-08M | 0.831 | 1.250 | 0.209 | 0.047 | 3.60 | 0.035 | 1 | 4 | 0.965 | 1.378 | 1.5 18500 |
R = Right hand, L = Left hand
