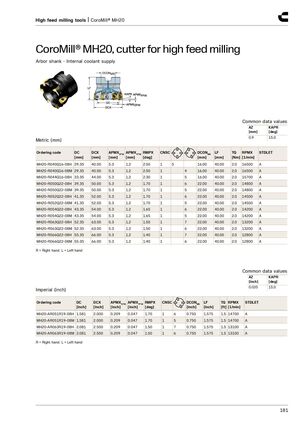

CoroMill® MH20, cutter for high feed milling
Arbor shank - Internal coolant supply
Common data values
| AZ | KAPR |
| [mm] | [deg] |
| 0.9 | 15.0 |
| Ordering code | DC [mm] | DCX [mm] | APMXEF [mm] | W APMXFF [mm] | W RMPX [deg] | CNSC | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | STDLET | ||
| MH20-R040Q16-08H | 29.35 | 40.00 | 5.3 | 1.2 | 2.50 | 1 | 5 | 16.00 | 40.00 | 2.0 | 16500 | A | |
| MH20-R040Q16-08M | 29.35 | 40.00 | 5.3 | 1.2 | 2.50 | 1 | 4 | 16.00 | 40.00 | 2.0 | 16500 | A | |
| MH20-R044Q16-08H | 33.35 | 44.00 | 5.3 | 1.2 | 2.30 | 1 | 5 | 16.00 | 40.00 | 2.0 | 15700 | A | |
| MH20-R050Q22-08H | 39.35 | 50.00 | 5.3 | 1.2 | 1.70 | 1 | 6 | 22.00 | 40.00 | 2.0 | 14800 | A | |
| MH20-R050Q22-08M | 39.35 | 50.00 | 5.3 | 1.2 | 1.70 | 1 | 5 | 22.00 | 40.00 | 2.0 | 14800 | A | |
| MH20-R052Q22-08H | 41.35 | 52.00 | 5.3 | 1.2 | 1.70 | 1 | 6 | 22.00 | 40.00 | 2.0 | 14500 | A | |
| MH20-R052Q22-08M | 41.35 | 52.00 | 5.3 | 1.2 | 1.70 | 1 | 5 | 22.00 | 40.00 | 2.0 | 14500 | A | |
| MH20-R054Q22-08H | 43.35 | 54.00 | 5.3 | 1.2 | 1.65 | 1 | 6 | 22.00 | 40.00 | 2.0 | 14200 | A | |
| MH20-R054Q22-08M | 43.35 | 54.00 | 5.3 | 1.2 | 1.65 | 1 | 5 | 22.00 | 40.00 | 2.0 | 14200 | A | |
| MH20-R063Q22-08H | 52.35 | 63.00 | 5.3 | 1.2 | 1.50 | 1 | 7 | 22.00 | 40.00 | 2.0 | 13200 | A | |
| MH20-R063Q22-08M | 52.35 | 63.00 | 5.3 | 1.2 | 1.50 | 1 | 6 | 22.00 | 40.00 | 2.0 | 13200 | A | |
| MH20-R066Q22-08H | 55.35 | 66.00 | 5.3 | 1.2 | 1.40 | 1 | 7 | 22.00 | 40.00 | 2.0 | 12800 | A | |
| MH20-R066Q22-08M | 55.35 | 66.00 | 5.3 | 1.2 | 1.40 | 1 | 6 | 22.00 | 40.00 | 2.0 | 12800 | A |
R = Right hand, L = Left hand
Common data values
| AZ | KAPR |
| [inch] | [deg] |
| 0.035 | 15.0 |
| Ordering code | DC [inch] | DCX [inch] | APMXEF [inch] | W APMXFF [inch] | W RMPX [deg] | CNSC | DCONMS [inch] | LF [inch] | TQ [ft] RPMX [1/min] | STDLET |
| MH20-AR051R19-08H | 1.581 | 2.000 | 0.209 | 0.047 | 1.70 | 1 6 | 0.750 | 1.575 | 1.5 14700 | A |
| MH20-AR051R19-08M | 1.581 | 2.000 | 0.209 | 0.047 | 1.70 | 1 5 | 0.750 | 1.575 | 1.5 14700 | A |
| MH20-AR063R19-08H | 2.081 | 2.500 | 0.209 | 0.047 | 1.50 | 1 7 | 0.750 | 1.575 | 1.5 13100 | A |
| MH20-AR063R19-08M | 2.081 | 2.500 | 0.209 | 0.047 | 1.50 | 1 6 | 0.750 | 1.575 | 1.5 13100 | A |
R = Right hand, L = Left hand
