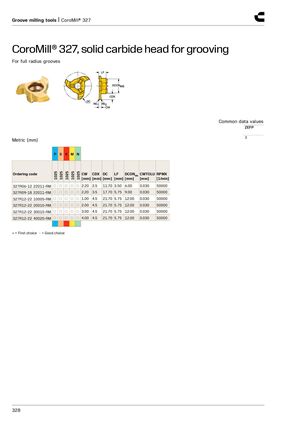

CoroMill® 327, solid carbide head for grooving
For full radius grooves
Common data values
ZEFP Metric (mm) 3
| P | S | K | M | N | ||||||||
| Ordering code | 1025 | 1025 | 1025 | 1025 | 1025 | CW [mm] | CDX [mm] | DC [mm] | LF [mm] | DCONMS [mm] | CWTOLU [mm] | RPMX [1/min] |
| 327R06-12 22011-RM | ○ | ○ | ○ | ○ | ○ | 2.20 | 2.5 | 11.70 | 3.50 | 6.00 | 0.030 | 50000 |
| 327R09-18 22011-RM | ○ | ○ | ○ | ○ | ○ | 2.20 | 3.5 | 17.70 | 5.75 | 9.00 | 0.030 | 50000 |
| 327R12-22 10005-RM | ○ | ○ | ○ | ○ | ○ | 1.00 | 4.5 | 21.70 | 5.75 | 12.00 | 0.030 | 50000 |
| 327R12-22 20010-RM | ○ | ○ | ○ | ○ | ○ | 2.00 | 4.5 | 21.70 | 5.75 | 12.00 | 0.030 | 50000 |
| 327R12-22 30015-RM | ○ | ○ | ○ | ○ | ○ | 3.00 | 4.5 | 21.70 | 5.75 | 12.00 | 0.030 | 50000 |
| 327R12-22 40020-RM | ○ | ○ | ○ | ○ | ○ | 4.00 | 4.5 | 21.70 | 5.75 | 12.00 | 0.030 | 50000 |
- = First choice = Good choice
