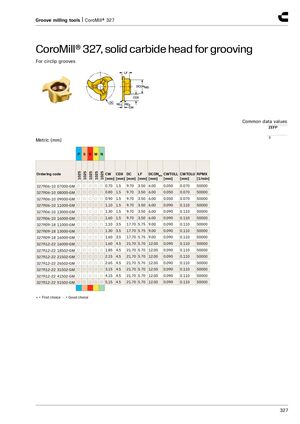

CoroMill® 327, solid carbide head for grooving
For circlip grooves
Common data values
ZEFP Metric (mm) 3
| P | S | K | M | N | ||||||||||
| Ordering code | 1025 | 1025 | 1025 | 1025 | 1025 | CW [mm] | CDX [mm] | DC [mm] | LF [mm] | DCONMS [mm] | CWTOLL [mm] | CWTOLU [mm] | RPMX [1/min] | |
| 327R06-10 07000-GM | ○ | ○ | ○ | ○ | ○ | 0.70 | 1.5 | 9.70 | 3.50 | 6.00 | 0.050 | 0.070 | 50000 | |
| 327R06-10 08000-GM | ○ | ○ | ○ | ○ | ○ | 0.80 | 1.5 | 9.70 | 3.50 | 6.00 | 0.050 | 0.070 | 50000 | |
| 327R06-10 09000-GM | ○ | ○ | ○ | ○ | ○ | 0.90 | 1.5 | 9.70 | 3.50 | 6.00 | 0.050 | 0.070 | 50000 | |
| 327R06-10 11000-GM | ○ | ○ | ○ | ○ | ○ | 1.10 | 1.5 | 9.70 | 3.50 | 6.00 | 0.090 | 0.110 | 50000 | |
| 327R06-10 13000-GM | ○ | ○ | ○ | ○ | ○ | 1.30 | 1.5 | 9.70 | 3.50 | 6.00 | 0.090 | 0.110 | 50000 | |
| 327R06-10 16000-GM | ○ | ○ | ○ | ○ | ○ | 1.60 | 1.5 | 9.70 | 3.50 | 6.00 | 0.090 | 0.110 | 50000 | |
| 327R09-18 11000-GM | ○ | ○ | ○ | ○ | ○ | 1.10 | 3.5 | 17.70 | 5.75 | 9.00 | 0.090 | 0.110 | 50000 | |
| 327R09-18 13000-GM | ○ | ○ | ○ | ○ | ○ | 1.30 | 3.5 | 17.70 | 5.75 | 9.00 | 0.090 | 0.110 | 50000 | |
| 327R09-18 16000-GM | ○ | ○ | ○ | ○ | ○ | 1.60 | 3.5 | 17.70 | 5.75 | 9.00 | 0.090 | 0.110 | 50000 | |
| 327R12-22 16000-GM | ○ | ○ | ○ | ○ | ○ | 1.60 | 4.5 | 21.70 | 5.70 | 12.00 | 0.090 | 0.110 | 50000 | |
| 327R12-22 18502-GM | ○ | ○ | ○ | ○ | ○ | 1.85 | 4.5 | 21.70 | 5.70 | 12.00 | 0.090 | 0.110 | 50000 | |
| 327R12-22 21502-GM | ○ | ○ | ○ | ○ | ○ | 2.15 | 4.5 | 21.70 | 5.70 | 12.00 | 0.090 | 0.110 | 50000 | |
| 327R12-22 26502-GM | ○ | ○ | ○ | ○ | ○ | 2.65 | 4.5 | 21.70 | 5.70 | 12.00 | 0.090 | 0.110 | 50000 | |
| 327R12-22 31502-GM | ○ | ○ | ○ | ○ | ○ | 3.15 | 4.5 | 21.70 | 5.70 | 12.00 | 0.090 | 0.110 | 50000 | |
| 327R12-22 41502-GM | ○ | ○ | ○ | ○ | ○ | 4.15 | 4.5 | 21.70 | 5.70 | 12.00 | 0.090 | 0.110 | 50000 | |
| 327R12-22 51502-GM | ○ | ○ | ○ | ○ | ○ | 5.15 | 4.5 | 21.70 | 5.70 | 12.00 | 0.090 | 0.110 | 50000 |
- = First choice = Good choice
