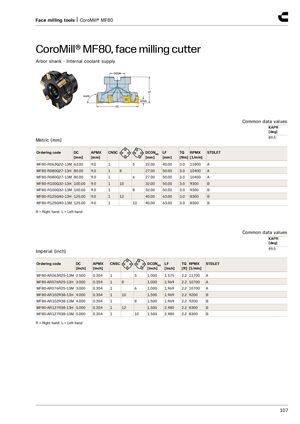

CoroMill® MF80, face milling cutter
Arbor shank - Internal coolant supply
Common data values
KAPR [deg] Metric (mm) 89.5
| Ordering code | DC [mm] | APMX [mm] | CNS | C | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | STDLET | |
| MF80-R063Q22-13M | 63.00 | 9.0 | 1 | 5 | 22.00 | 40.00 | 3.0 | 11800 | A | |
| MF80-R080Q27-13H | 80.00 | 9.0 | 1 | 8 | 27.00 | 50.00 | 3.0 | 10400 | A | |
| MF80-R080Q27-13M | 80.00 | 9.0 | 1 | 6 | 27.00 | 50.00 | 3.0 | 10400 | A | |
| MF80-R100Q32-13H | 100.00 | 9.0 | 1 | 10 | 32.00 | 50.00 | 3.0 | 9300 | B | |
| MF80-R100Q32-13M | 100.00 | 9.0 | 1 | 8 | 32.00 | 50.00 | 3.0 | 9300 | B | |
| MF80-R125Q40-13H | 125.00 | 9.0 | 1 | 12 | 40.00 | 63.00 | 3.0 | 8300 | B | |
| MF80-R125Q40-13M | 125.00 | 9.0 | 1 | 10 | 40.00 | 63.00 | 3.0 | 8300 | B |
R = Right hand, L = Left hand
| Common data values KAPR [deg] | ||||||||||
| mperial (inch) | 89.5 | |||||||||
| Ordering code | DC [inch] | APMX [inch] | CNSC | DCONMS [inch] | LF [inch] | TQ [ft] RPMX [1/min] | STDLET | |||
| MF80-AR063R25-13M | 2.500 | 0.354 | 1 | 5 | 1.000 | 1.575 | 2.2 11700 | A | ||
| MF80-AR076R25-13H | 3.000 | 0.354 | 1 | 8 | 1.000 | 1.969 | 2.2 10700 | A | ||
| MF80-AR076R25-13M | 3.000 | 0.354 | 1 | 6 | 1.000 | 1.969 | 2.2 10700 | A | ||
| MF80-AR102R38-13H | 4.000 | 0.354 | 1 | 10 | 1.500 | 1.969 | 2.2 9200 | B | ||
| MF80-AR102R38-13M | 4.000 | 0.354 | 1 | 8 | 1.500 | 1.969 | 2.2 9200 | B | ||
| MF80-AR127R38-13H | 5.000 | 0.354 | 1 | 12 | 1.500 | 2.480 | 2.2 8300 | B | ||
| MF80-AR127R38-13M | 5.000 | 0.354 | 1 | 10 | 1.500 | 2.480 | 2.2 8300 | B |
R = Right hand, L = Left hand
