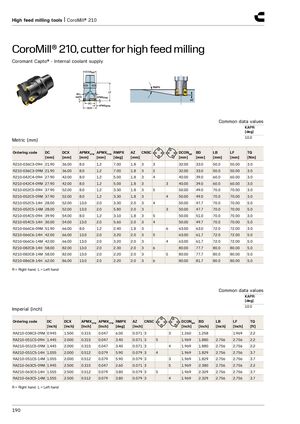

CoroMill® 210, cutter for high feed milling
Coromant Capto® - Internal coolant supply
| Com | mon d | ata values | ||||||||||||
| Metric (mm) | KAPR [deg] 10.0 | |||||||||||||
| Ordering code | DC [mm] | DCX [mm] | APMXEFW [mm] | APMXFFW [mm] | RMPX [deg] | AZ [mm] | CNSC | DCONMS [mm] | BD [mm] | LB [mm] | LF [mm] | TQ [Nm] | ||
| R210-036C3-09H | 21.90 | 36.00 | 8.0 | 1.2 | 7.00 | 1.8 | 3 | 3 | 32.00 | 33.0 | 50.0 | 50.00 | 3.0 | |
| R210-036C3-09M | 21.90 | 36.00 | 8.0 | 1.2 | 7.00 | 1.8 | 3 | 2 | 32.00 | 33.0 | 50.0 | 50.00 | 3.0 | |
| R210-042C4-09H | 27.90 | 42.00 | 8.0 | 1.2 | 5.00 | 1.8 | 3 | 4 | 40.00 | 39.0 | 60.0 | 60.00 | 3.0 | |
| R210-042C4-09M | 27.90 | 42.00 | 8.0 | 1.2 | 5.00 | 1.8 | 3 | 3 | 40.00 | 39.0 | 60.0 | 60.00 | 3.0 | |
| R210-052C5-09H | 37.90 | 52.00 | 8.0 | 1.2 | 3.30 | 1.8 | 3 | 5 | 50.00 | 49.0 | 70.0 | 70.00 | 3.0 | |
| R210-052C5-09M | 37.90 | 52.00 | 8.0 | 1.2 | 3.30 | 1.8 | 3 | 4 | 50.00 | 49.0 | 70.0 | 70.00 | 3.0 | |
| R210-052C5-14H | 28.00 | 52.00 | 13.0 | 2.0 | 3.30 | 2.0 | 3 | 4 | 50.00 | 47.7 | 70.0 | 70.00 | 5.0 | |
| R210-052C5-14M | 28.00 | 52.00 | 13.0 | 2.0 | 5.80 | 2.0 | 3 | 3 | 50.00 | 47.7 | 70.0 | 70.00 | 5.0 | |
| R210-054C5-09H | 39.90 | 54.00 | 8.0 | 1.2 | 3.10 | 1.8 | 3 | 5 | 50.00 | 51.0 | 70.0 | 70.00 | 3.0 | |
| R210-054C5-14H | 30.00 | 54.00 | 13.0 | 2.0 | 5.60 | 2.0 | 3 | 4 | 50.00 | 49.7 | 70.0 | 70.00 | 5.0 | |
| R210-066C6-09M | 51.90 | 66.00 | 8.0 | 1.2 | 2.40 | 1.8 | 3 | 6 | 63.00 | 63.0 | 72.0 | 72.00 | 3.0 | |
| R210-066C6-14H | 42.00 | 66.00 | 13.0 | 2.0 | 3.20 | 2.0 | 3 | 5 | 63.00 | 61.7 | 72.0 | 72.00 | 5.0 | |
| R210-066C6-14M | 42.00 | 66.00 | 13.0 | 2.0 | 3.20 | 2.0 | 3 | 4 | 63.00 | 61.7 | 72.0 | 72.00 | 5.0 | |
| R210-082C8-14H | 58.00 | 82.00 | 13.0 | 2.0 | 2.30 | 2.0 | 3 | 6 | 80.00 | 77.7 | 80.0 | 80.00 | 5.0 | |
| R210-082C8-14M | 58.00 | 82.00 | 13.0 | 2.0 | 2.20 | 2.0 | 3 | 5 | 80.00 | 77.7 | 80.0 | 80.00 | 5.0 | |
| R210-086C8-14H | 62.00 | 86.00 | 13.0 | 2.0 | 2.20 | 2.0 | 3 | 6 | 80.00 | 81.7 | 80.0 | 80.00 | 5.0 |
R = Right hand, L = Left hand
| Com | mon dat [ | a values KAPR deg] | |||||||||||
| mperial (inch) | 10.0 | ||||||||||||
| Ordering code DC [inch] | DCX [inch] | APMXEF [inch] | W APMXFFW [inch] | RMPX [deg] | AZ [inch] | CNSC | DCONMS [inch] | BD [inch] | LB [inch] | LF [inch] | TQ [ft] | ||
| RA210-038C3-09M 0.945 | 1.500 | 0.315 | 0.047 | 6.00 | 0.071 | 3 | 3 | 1.260 | 1.258 | 1.969 | 2.2 | ||
| RA210-051C5-09H 1.445 | 2.000 | 0.315 | 0.047 | 3.40 | 0.071 | 3 | 5 | 1.969 | 1.880 | 2.756 | 2.756 | 2.2 | |
| RA210-051C5-09M 1.445 | 2.000 | 0.315 | 0.047 | 3.40 | 0.071 | 3 | 4 | 1.969 | 1.880 | 2.756 | 2.756 | 2.2 | |
| RA210-051C5-14H 1.055 | 2.000 | 0.512 | 0.079 | 5.90 | 0.079 | 3 | 4 | 1.969 | 1.829 | 2.756 | 2.756 | 3.7 | |
| RA210-051C5-14M 1.055 | 2.000 | 0.512 | 0.079 | 5.90 | 0.079 | 3 | 3 | 1.969 | 1.829 | 2.756 | 2.756 | 3.7 | |
| RA210-063C5-09M 1.945 | 2.500 | 0.315 | 0.047 | 2.60 | 0.071 | 3 | 5 | 1.969 | 2.380 | 2.756 | 2.756 | 2.2 | |
| RA210-063C5-14H 1.555 | 2.500 | 0.512 | 0.079 | 3.80 | 0.079 | 3 | 5 | 1.969 | 2.329 | 2.756 | 2.756 | 3.7 | |
| RA210-063C5-14M 1.555 | 2.500 | 0.512 | 0.079 | 3.80 | 0.079 | 3 | 4 | 1.969 | 2.329 | 2.756 | 2.756 | 3.7 |
