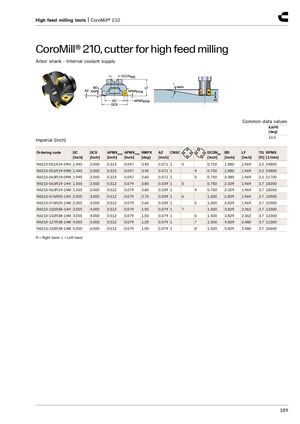

CoroMill® 210, cutter for high feed milling
Arbor shank - Internal coolant supply
Common data values
KAPR [deg] Imperial (inch) 10.0
| Ordering code DC [inch] | DCX [inch] | APMXEF [inch] | W APMXFFW [inch] | RMPX [deg] | AZ [inch] | CNS | C | DCONMS [inch] | BD [inch] | LF [inch] | TQ [ft] RPMX [1/min] | |
| RA210-051R19-09H 1.445 | 2.000 | 0.315 | 0.047 | 3.40 | 0.071 | 1 | 5 | 0.750 | 1.880 | 1.969 | 2.2 24800 | |
| RA210-051R19-09M 1.445 | 2.000 | 0.315 | 0.047 | 3.40 | 0.071 | 1 | 4 | 0.750 | 1.880 | 1.969 | 2.2 24800 | |
| RA210-063R19-09M 1.945 | 2.500 | 0.315 | 0.047 | 2.60 | 0.071 | 1 | 5 | 0.750 | 2.380 | 1.969 | 2.2 21700 | |
| RA210-063R19-14H 1.555 | 2.500 | 0.512 | 0.079 | 3.80 | 0.039 | 1 | 5 | 0.750 | 2.329 | 1.969 | 3.7 18200 | |
| RA210-063R19-14M 1.555 | 2.500 | 0.512 | 0.079 | 3.80 | 0.039 | 1 | 4 | 0.750 | 2.329 | 1.969 | 3.7 18200 | |
| RA210-076R25-14H 2.055 | 3.000 | 0.512 | 0.079 | 2.70 | 0.039 | 1 | 6 | 1.000 | 2.829 | 1.969 | 3.7 15900 | |
| RA210-076R25-14M 2.055 | 3.000 | 0.512 | 0.079 | 2.60 | 0.039 | 1 | 5 | 1.000 | 2.829 | 1.969 | 3.7 15900 | |
| RA210-102R38-14H 3.055 | 4.000 | 0.512 | 0.079 | 1.50 | 0.079 | 1 | 7 | 1.500 | 3.829 | 2.362 | 3.7 13300 | |
| RA210-102R38-14M 3.055 | 4.000 | 0.512 | 0.079 | 1.50 | 0.079 | 1 | 6 | 1.500 | 3.829 | 2.362 | 3.7 13300 | |
| RA210-127R38-14M 4.055 | 5.000 | 0.512 | 0.079 | 1.20 | 0.079 | 1 | 7 | 1.500 | 4.829 | 2.480 | 3.7 11300 | |
| RA210-152R38-14M 5.055 | 6.000 | 0.512 | 0.079 | 1.00 | 0.079 | 1 | 8 | 1.500 | 5.829 | 2.480 | 3.7 10600 |
R = Right hand, L = Left hand
