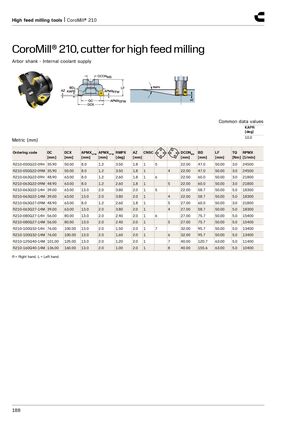

CoroMill® 210, cutter for high feed milling
Arbor shank - Internal coolant supply
Common data values
| Metric (mm) | KAPR [deg] 10.0 | |||||||||||||
| Ordering code | DC [mm] | DCX [mm] | APMXEFW [mm] | APMXFFW [mm] | RMPX [deg] | AZ [mm] | CNSC | DCONMS [mm] | BD [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | ||
| R210-050Q22-09H | 35.90 | 50.00 | 8.0 | 1.2 | 3.50 | 1.8 | 1 | 5 | 22.00 | 47.0 | 50.00 | 3.0 | 24500 | |
| R210-050Q22-09M | 35.90 | 50.00 | 8.0 | 1.2 | 3.50 | 1.8 | 1 | 4 | 22.00 | 47.0 | 50.00 | 3.0 | 24500 | |
| R210-063Q22-09H | 48.90 | 63.00 | 8.0 | 1.2 | 2.60 | 1.8 | 1 | 6 | 22.00 | 60.0 | 50.00 | 3.0 | 21800 | |
| R210-063Q22-09M | 48.90 | 63.00 | 8.0 | 1.2 | 2.60 | 1.8 | 1 | 5 | 22.00 | 60.0 | 50.00 | 3.0 | 21800 | |
| R210-063Q22-14H | 39.00 | 63.00 | 13.0 | 2.0 | 3.80 | 2.0 | 1 | 5 | 22.00 | 58.7 | 50.00 | 5.0 | 18300 | |
| R210-063Q22-14M | 39.00 | 63.00 | 13.0 | 2.0 | 3.80 | 2.0 | 1 | 4 | 22.00 | 58.7 | 50.00 | 5.0 | 18300 | |
| R210-063Q27-09M | 48.90 | 63.00 | 8.0 | 1.2 | 2.60 | 1.8 | 1 | 5 | 27.00 | 60.0 | 50.00 | 3.0 | 21800 | |
| R210-063Q27-14M | 39.00 | 63.00 | 13.0 | 2.0 | 3.80 | 2.0 | 1 | 4 | 27.00 | 58.7 | 50.00 | 5.0 | 18300 | |
| R210-080Q27-14H | 56.00 | 80.00 | 13.0 | 2.0 | 2.40 | 2.0 | 1 | 6 | 27.00 | 75.7 | 50.00 | 5.0 | 15400 | |
| R210-080Q27-14M | 56.00 | 80.00 | 13.0 | 2.0 | 2.40 | 2.0 | 1 | 5 | 27.00 | 75.7 | 50.00 | 5.0 | 15400 | |
| R210-100Q32-14H | 76.00 | 100.00 | 13.0 | 2.0 | 1.50 | 2.0 | 1 | 7 | 32.00 | 95.7 | 50.00 | 5.0 | 13400 | |
| R210-100Q32-14M | 76.00 | 100.00 | 13.0 | 2.0 | 1.60 | 2.0 | 1 | 6 | 32.00 | 95.7 | 50.00 | 5.0 | 13400 | |
| R210-125Q40-14M | 101.00 | 125.00 | 13.0 | 2.0 | 1.20 | 2.0 | 1 | 7 | 40.00 | 120.7 | 63.00 | 5.0 | 11400 | |
| R210-160Q40-14M | 136.00 | 160.00 | 13.0 | 2.0 | 1.00 | 2.0 | 1 | 8 | 40.00 | 155.6 | 63.00 | 5.0 | 10400 |
R = Right hand, L = Left hand
