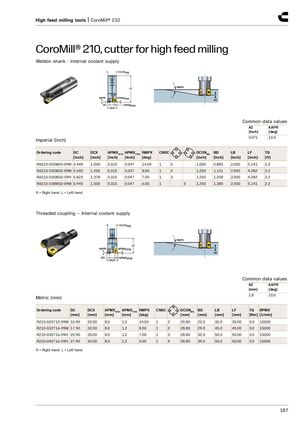

CoroMill® 210, cutter for high feed milling
Weldon shank - Internal coolant supply
| C | ommon | data values | |||||||||
| AZ [inch] | KAPR [deg] | ||||||||||
| mperial (inch) | 0.071 | 10.0 | |||||||||
| Ordering code | DC [inch] | DCX [inch] | APMXEF [inch] | W APMXFFW [inch] | RMPX [deg] | CNSC | DCONMS [inch] | BD [inch] | LB [inch] | LF [inch] | TQ [ft] |
| RA210-025M25-09M | 0.445 | 1.000 | 0.315 | 0.047 | 14.00 | 1 2 | 1.000 | 0.880 | 2.000 | 5.141 | 2.2 |
| RA210-032M32-09M | 0.695 | 1.250 | 0.315 | 0.047 | 8.00 | 1 2 | 1.250 | 1.131 | 2.000 | 4.282 | 2.2 |
| RA210-035M32-09H | 0.823 | 1.378 | 0.315 | 0.047 | 7.00 | 1 3 | 1.250 | 1.258 | 2.000 | 4.282 | 2.2 |
| RA210-038M32-09M | 0.945 | 1.500 | 0.315 | 0.047 | 6.00 | 1 | 3 1.250 | 1.380 | 2.500 | 5.141 | 2.2 |
R = Right hand, L = Left hand
Threaded coupling – Internal coolant supply
| Common data values |
| AZ KAPR |
| [mm] [deg] |
| 1.8 10.0 |
| Ordering code | DC [mm] | DCX [mm] | APMXEF [mm] | W APMXFFW [mm] | RMPX [deg] | CNSC | DCONMS [mm] | BD [mm] | LB [mm] | LF [mm] | TQ [Nm | ] RPMX [1/min] | |
| R210-025T12-09M | 10.90 | 25.00 | 8.0 | 1.2 | 14.50 | 1 | 2 | 20.80 | 22.0 | 35.0 | 35.00 | 3.0 | 15000 |
| R210-032T16-09M | 17.90 | 32.00 | 8.0 | 1.2 | 8.00 | 1 | 2 | 28.80 | 29.0 | 45.0 | 45.00 | 3.0 | 15000 |
| R210-035T16-09H | 20.90 | 35.00 | 8.0 | 1.2 | 7.00 | 1 | 3 | 28.80 | 32.0 | 50.0 | 50.00 | 3.0 | 15000 |
| R210-042T16-09H | 27.90 | 42.00 | 8.0 | 1.2 | 5.00 | 1 | 4 | 28.80 | 39.0 | 50.0 | 50.00 | 3.0 | 15000 |
R = Right hand, L = Left hand
