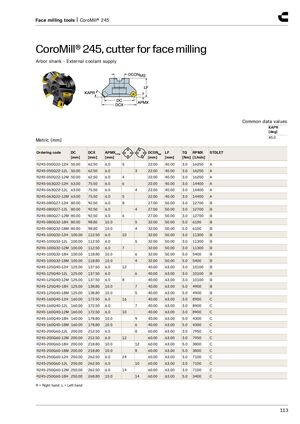

CoroMill® 245, cutter for face milling
Arbor shank - External coolant supply
| Common data values |
| KAPR |
| [deg] |
| 45.0 |
| Ordering code | DC [mm] | DCX [mm] | APMXFF [mm] | W | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | STDLET | |
| R245-050Q22-12H | 50.00 | 62.50 | 6.0 | 5 | 22.00 | 40.00 | 3.0 | 16250 | A | |
| R245-050Q22-12L | 50.00 | 62.50 | 6.0 | 3 | 22.00 | 40.00 | 3.0 | 16250 | A | |
| R245-050Q22-12M | 50.00 | 62.50 | 6.0 | 4 | 22.00 | 40.00 | 3.0 | 16250 | A | |
| R245-063Q22-12H | 63.00 | 75.50 | 6.0 | 6 | 22.00 | 40.00 | 3.0 | 14400 | A | |
| R245-063Q22-12L | 63.00 | 75.50 | 6.0 | 4 | 22.00 | 40.00 | 3.0 | 14400 | A | |
| R245-063Q22-12M | 63.00 | 75.50 | 6.0 | 5 | 22.00 | 40.00 | 3.0 | 14400 | A | |
| R245-080Q27-12H | 80.00 | 92.50 | 6.0 | 8 | 27.00 | 50.00 | 3.0 | 12700 | B | |
| R245-080Q27-12L | 80.00 | 92.50 | 6.0 | 4 | 27.00 | 50.00 | 3.0 | 12700 | B | |
| R245-080Q27-12M | 80.00 | 92.50 | 6.0 | 6 | 27.00 | 50.00 | 3.0 | 12700 | B | |
| R245-080Q32-18H | 80.00 | 98.80 | 10.0 | 5 | 32.00 | 50.00 | 5.0 | 6100 | B | |
| R245-080Q32-18M | 80.00 | 98.80 | 10.0 | 4 | 32.00 | 50.00 | 5.0 | 6100 | B | |
| R245-100Q32-12H | 100.00 | 112.50 | 6.0 | 10 | 32.00 | 50.00 | 3.0 | 11300 | B | |
| R245-100Q32-12L | 100.00 | 112.50 | 6.0 | 5 | 32.00 | 50.00 | 3.0 | 11300 | B | |
| R245-100Q32-12M | 100.00 | 112.50 | 6.0 | 7 | 32.00 | 50.00 | 3.0 | 11300 | B | |
| R245-100Q32-18H | 100.00 | 118.80 | 10.0 | 6 | 32.00 | 50.00 | 5.0 | 5400 | B | |
| R245-100Q32-18M | 100.00 | 118.80 | 10.0 | 4 | 32.00 | 50.00 | 5.0 | 5400 | B | |
| R245-125Q40-12H | 125.00 | 137.50 | 6.0 | 12 | 40.00 | 63.00 | 3.0 | 10100 | B | |
| R245-125Q40-12L | 125.00 | 137.50 | 6.0 | 6 | 40.00 | 63.00 | 3.0 | 10100 | B | |
| R245-125Q40-12M | 125.00 | 137.50 | 6.0 | 8 | 40.00 | 63.00 | 3.0 | 10100 | B | |
| R245-125Q40-18H | 125.00 | 138.80 | 10.0 | 7 | 40.00 | 63.00 | 5.0 | 4900 | B | |
| R245-125Q40-18M | 125.00 | 138.80 | 10.0 | 5 | 40.00 | 63.00 | 5.0 | 4900 | B | |
| R245-160Q40-12H | 160.00 | 172.50 | 6.0 | 16 | 40.00 | 63.00 | 3.0 | 8900 | C | |
| R245-160Q40-12L | 160.00 | 172.50 | 6.0 | 7 | 40.00 | 63.00 | 3.0 | 8900 | C | |
| R245-160Q40-12M | 160.00 | 172.50 | 6.0 | 10 | 40.00 | 63.00 | 3.0 | 8900 | C | |
| R245-160Q40-18H | 160.00 | 178.80 | 10.0 | 9 | 40.00 | 63.00 | 5.0 | 4300 | C | |
| R245-160Q40-18M | 160.00 | 178.80 | 10.0 | 6 | 40.00 | 63.00 | 5.0 | 4300 | C | |
| R245-200Q60-12L | 200.00 | 212.50 | 6.0 | 8 | 60.00 | 63.00 | 3.0 | 7950 | C | |
| R245-200Q60-12M | 200.00 | 212.50 | 6.0 | 12 | 60.00 | 63.00 | 3.0 | 7950 | C | |
| R245-200Q60-18H | 200.00 | 218.80 | 10.0 | 12 | 60.00 | 63.00 | 5.0 | 3800 | C | |
| R245-200Q60-18M | 200.00 | 218.80 | 10.0 | 8 | 60.00 | 63.00 | 5.0 | 3800 | C | |
| R245-250Q60-12H | 250.00 | 262.50 | 6.0 | 24 | 60.00 | 63.00 | 3.0 | 7100 | C | |
| R245-250Q60-12L | 250.00 | 262.50 | 6.0 | 10 | 60.00 | 63.00 | 3.0 | 7100 | C | |
| R245-250Q60-12M | 250.00 | 262.50 | 6.0 | 14 | 60.00 | 63.00 | 3.0 | 7100 | C | |
| R245-250Q60-18H | 250.00 | 268.80 | 10.0 | 14 | 60.00 | 63.00 | 5.0 | 3400 | C |
