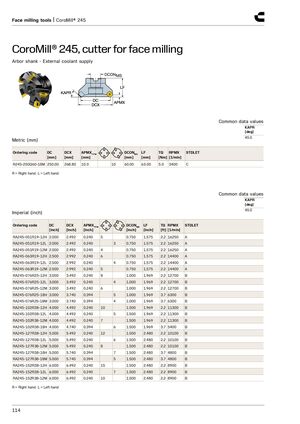

CoroMill® 245, cutter for face milling
Arbor shank - External coolant supply
Common data values
KAPR [deg] Metric (mm) 45.0
| Ordering code | DC [mm] | DCX [mm] | APMXFFW [mm] | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | STDLET | |
| R245-250Q60-18M | 250.00 | 268.80 | 10.0 | 10 | 60.00 | 63.00 | 5.0 | 3400 | C |
R = Right hand, L = Left hand
Common data values
| KAPR | |||||||||
| mperial (inch) | [deg] 45.0 | ||||||||
| Ordering code DC [inch] | DCX [inch] | APMXFFW [inch] | DCONMS [inch] | LF [inch] | TQ [ft] RPMX [1/min] | STDLET | |||
| RA245-051R19-12H 2.000 | 2.492 | 0.240 | 5 | 0.750 | 1.575 | 2.2 16250 | A | ||
| RA245-051R19-12L 2.000 | 2.492 | 0.240 | 3 | 0.750 | 1.575 | 2.2 16250 | A | ||
| RA245-051R19-12M 2.000 | 2.492 | 0.240 | 4 | 0.750 | 1.575 | 2.2 16250 | A | ||
| RA245-063R19-12H 2.500 | 2.992 | 0.240 | 6 | 0.750 | 1.575 | 2.2 14400 | A | ||
| RA245-063R19-12L 2.500 | 2.992 | 0.240 | 4 | 0.750 | 1.575 | 2.2 14400 | A | ||
| RA245-063R19-12M 2.500 | 2.992 | 0.240 | 5 | 0.750 | 1.575 | 2.2 14400 | A | ||
| RA245-076R25-12H 3.000 | 3.492 | 0.240 | 8 | 1.000 | 1.969 | 2.2 12700 | B | ||
| RA245-076R25-12L 3.000 | 3.492 | 0.240 | 4 | 1.000 | 1.969 | 2.2 12700 | B | ||
| RA245-076R25-12M 3.000 | 3.492 | 0.240 | 6 | 1.000 | 1.969 | 2.2 12700 | B | ||
| RA245-076R25-18H 3.000 | 3.740 | 0.394 | 5 | 1.000 | 1.969 | 3.7 6300 | B | ||
| RA245-076R25-18M 3.000 | 3.740 | 0.394 | 4 | 1.000 | 1.969 | 3.7 6300 | B | ||
| RA245-102R38-12H 4.000 | 4.492 | 0.240 | 10 | 1.500 | 1.969 | 2.2 11300 | B | ||
| RA245-102R38-12L 4.000 | 4.492 | 0.240 | 5 | 1.500 | 1.969 | 2.2 11300 | B | ||
| RA245-102R38-12M 4.000 | 4.492 | 0.240 | 7 | 1.500 | 1.969 | 2.2 11300 | B | ||
| RA245-102R38-18H 4.000 | 4.740 | 0.394 | 6 | 1.500 | 1.969 | 3.7 5400 | B | ||
| RA245-127R38-12H 5.000 | 5.492 | 0.240 | 12 | 1.500 | 2.480 | 2.2 10100 | B | ||
| RA245-127R38-12L 5.000 | 5.492 | 0.240 | 6 | 1.500 | 2.480 | 2.2 10100 | B | ||
| RA245-127R38-12M 5.000 | 5.492 | 0.240 | 8 | 1.500 | 2.480 | 2.2 10100 | B | ||
| RA245-127R38-18H 5.000 | 5.740 | 0.394 | 7 | 1.500 | 2.480 | 3.7 4800 | B | ||
| RA245-127R38-18M 5.000 | 5.740 | 0.394 | 5 | 1.500 | 2.480 | 3.7 4800 | B | ||
| RA245-152R38-12H 6.000 | 6.492 | 0.240 | 15 | 1.500 | 2.480 | 2.2 8900 | B | ||
| RA245-152R38-12L 6.000 | 6.492 | 0.240 | 7 | 1.500 | 2.480 | 2.2 8900 | B | ||
| RA245-152R38-12M 6.000 | 6.492 | 0.240 | 10 | 1.500 | 2.480 | 2.2 8900 | B |
