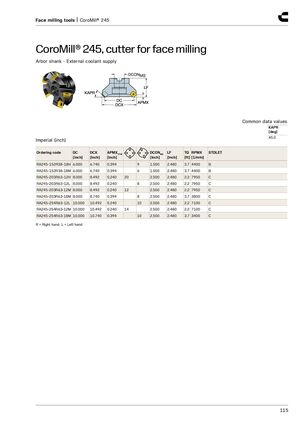

CoroMill® 245, cutter for face milling
Arbor shank - External coolant supply
Common data values
KAPR [deg] Imperial (inch) 45.0
| Ordering code | DC [inch] | DCX [inch] | APMXFFW [inch] | DCONMS [inch] | LF [inch] | TQ [ft] | RPMX [1/min] | STDLET | ||
| RA245-152R38-18H | 6.000 | 6.740 | 0.394 | 9 | 1.500 | 2.480 | 3.7 | 4400 | B | |
| RA245-152R38-18M | 6.000 | 6.740 | 0.394 | 6 | 1.500 | 2.480 | 3.7 | 4400 | B | |
| RA245-203R63-12H | 8.000 | 8.492 | 0.240 | 20 | 2.500 | 2.480 | 2.2 | 7950 | C | |
| RA245-203R63-12L | 8.000 | 8.492 | 0.240 | 8 | 2.500 | 2.480 | 2.2 | 7950 | C | |
| RA245-203R63-12M | 8.000 | 8.492 | 0.240 | 12 | 2.500 | 2.480 | 2.2 | 7950 | C | |
| RA245-203R63-18M | 8.000 | 8.740 | 0.394 | 8 | 2.500 | 2.480 | 3.7 | 3800 | C | |
| RA245-254R63-12L | 10.000 | 10.492 | 0.240 | 10 | 2.500 | 2.480 | 2.2 | 7100 | C | |
| RA245-254R63-12M | 10.000 | 10.492 | 0.240 | 14 | 2.500 | 2.480 | 2.2 | 7100 | C | |
| RA245-254R63-18M | 10.000 | 10.740 | 0.394 | 10 | 2.500 | 2.480 | 3.7 | 3400 | C |
R = Right hand, L = Left hand
