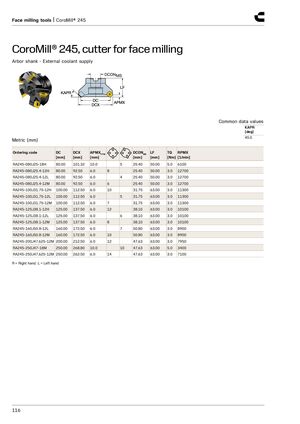

CoroMill® 245, cutter for face milling
Arbor shank - External coolant supply
Common data values
| Metric (mm) | KAPR [deg] 45.0 | |||||||||
| Ordering code | DC [mm] | DCX [mm] | APMXFFW [mm] | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | |||
| RA245-080J25-18H | 80.00 | 101.32 | 10.0 | 5 | 25.40 | 50.00 | 5.0 | 6100 | ||
| RA245-080J25.4-12H | 80.00 | 92.50 | 6.0 | 8 | 25.40 | 50.00 | 3.0 | 12700 | ||
| RA245-080J25.4-12L | 80.00 | 92.50 | 6.0 | 4 | 25.40 | 50.00 | 3.0 | 12700 | ||
| RA245-080J25.4-12M | 80.00 | 92.50 | 6.0 | 6 | 25.40 | 50.00 | 3.0 | 12700 | ||
| RA245-100J31.75-12H | 100.00 | 112.50 | 6.0 | 10 | 31.75 | 63.00 | 3.0 | 11300 | ||
| RA245-100J31.75-12L | 100.00 | 112.50 | 6.0 | 5 | 31.75 | 63.00 | 3.0 | 11300 | ||
| RA245-100J31.75-12M | 100.00 | 112.50 | 6.0 | 7 | 31.75 | 63.00 | 3.0 | 11300 | ||
| RA245-125J38.1-12H | 125.00 | 137.50 | 6.0 | 12 | 38.10 | 63.00 | 3.0 | 10100 | ||
| RA245-125J38.1-12L | 125.00 | 137.50 | 6.0 | 6 | 38.10 | 63.00 | 3.0 | 10100 | ||
| RA245-125J38.1-12M | 125.00 | 137.50 | 6.0 | 8 | 38.10 | 63.00 | 3.0 | 10100 | ||
| RA245-160J50.8-12L | 160.00 | 172.50 | 6.0 | 7 | 50.80 | 63.00 | 3.0 | 8900 | ||
| RA245-160J50.8-12M | 160.00 | 172.50 | 6.0 | 10 | 50.80 | 63.00 | 3.0 | 8900 | ||
| RA245-200J47.625-12M | 200.00 | 212.50 | 6.0 | 12 | 47.63 | 63.00 | 3.0 | 7950 | ||
| RA245-250J47-18M | 250.00 | 268.80 | 10.0 | 10 | 47.63 | 63.00 | 5.0 | 3400 | ||
| RA245-250J47.625-12M | 250.00 | 262.50 | 6.0 | 14 | 47.63 | 63.00 | 3.0 | 7100 |
R = Right hand, L = Left hand
