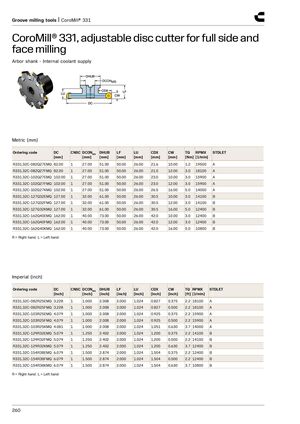

face milling
Arbor shank - Internal coolant supply
Metric (mm)
| Ordering code DC [mm] | CNS | C DCONMS [mm] | DHUB [mm] | LF [mm] | LU [mm] | CDX [mm] | CW [mm] | TQ [Nm] | RPMX [1/min] | STDLET |
| R331.32C-082Q27EMQ 82.00 | 1 | 27.00 | 51.00 | 50.00 | 26.00 | 21.6 | 10.00 | 1.2 | 19500 | A |
| R331.32C-082Q27FMQ 82.00 | 1 | 27.00 | 51.00 | 50.00 | 26.00 | 21.0 | 12.00 | 3.0 | 18100 | A |
| R331.32C-102Q27EMQ 102.00 | 1 | 27.00 | 51.00 | 50.00 | 26.00 | 23.0 | 10.00 | 3.0 | 15900 | A |
| R331.32C-102Q27FMQ 102.00 | 1 | 27.00 | 51.00 | 50.00 | 26.00 | 23.0 | 12.00 | 3.0 | 15900 | A |
| R331.32C-102Q27KMQ 102.00 | 1 | 27.00 | 51.00 | 50.00 | 26.00 | 26.5 | 16.00 | 5.0 | 14000 | A |
| R331.32C-127Q32EMQ 127.00 | 1 | 32.00 | 61.00 | 50.00 | 26.00 | 30.5 | 10.00 | 3.0 | 14100 | B |
| R331.32C-127Q32FMQ 127.00 | 1 | 32.00 | 61.00 | 50.00 | 26.00 | 30.5 | 12.00 | 3.0 | 14100 | B |
| R331.32C-127Q32KMQ 127.00 | 1 | 32.00 | 61.00 | 50.00 | 26.00 | 30.5 | 16.00 | 5.0 | 12400 | B |
| R331.32C-162Q40EMQ 162.00 | 1 | 40.00 | 73.00 | 50.00 | 26.00 | 42.0 | 10.00 | 3.0 | 12400 | B |
| R331.32C-162Q40FMQ 162.00 | 1 | 40.00 | 73.00 | 50.00 | 26.00 | 42.0 | 12.00 | 3.0 | 12400 | B |
| R331.32C-162Q40KMQ 162.00 | 1 | 40.00 | 73.00 | 50.00 | 26.00 | 42.0 | 16.00 | 5.0 | 10800 | B |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code DC [inch] | CNSC DCONMS [inch] | DHUB [inch] | LF [inch] | LU [inch] | CDX [inch] | CW [inch] | TQ [ft] RPMX [1/min] | STDLET |
| R331.32C-082R25EMQ 3.228 | 1 1.000 | 2.008 | 2.000 | 1.024 | 0.827 | 0.375 | 2.2 18100 | A |
| R331.32C-082R25FMQ 3.228 | 1 1.000 | 2.008 | 2.000 | 1.024 | 0.827 | 0.500 | 2.2 18100 | A |
| R331.32C-103R25EMQ 4.079 | 1 1.000 | 2.008 | 2.000 | 1.024 | 0.925 | 0.375 | 2.2 15900 | A |
| R331.32C-103R25FMQ 4.079 | 1 1.000 | 2.008 | 2.000 | 1.024 | 0.925 | 0.500 | 2.2 15900 | A |
| R331.32C-103R25KMQ 4.081 | 1 1.000 | 2.008 | 2.000 | 1.024 | 1.051 | 0.630 | 3.7 14000 | A |
| R331.32C-129R32EMQ 5.079 | 1 1.250 | 2.402 | 2.000 | 1.024 | 1.200 | 0.375 | 2.2 14100 | B |
| R331.32C-129R32FMQ 5.079 | 1 1.250 | 2.402 | 2.000 | 1.024 | 1.200 | 0.500 | 2.2 14100 | B |
| R331.32C-129R32KMQ 5.079 | 1 1.250 | 2.402 | 2.000 | 1.024 | 1.200 | 0.630 | 3.7 12400 | B |
| R331.32C-154R38EMQ 6.079 | 1 1.500 | 2.874 | 2.000 | 1.024 | 1.504 | 0.375 | 2.2 12400 | B |
| R331.32C-154R38FMQ 6.079 | 1 1.500 | 2.874 | 2.000 | 1.024 | 1.504 | 0.500 | 2.2 12400 | B |
| R331.32C-154R38KMQ 6.079 | 1 1.500 | 2.874 | 2.000 | 1.024 | 1.504 | 0.630 | 3.7 10800 | B |
R = Right hand, L = Left hand
