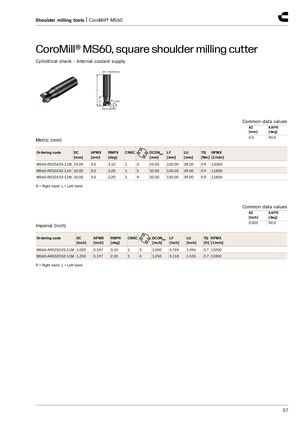

Плечевые фрезы | CoroMill® MS60
CoroMill® MS60 — фреза для квадратного плечевого фрезерования с цилиндрическим хвостовиком и внутренним подводом охлаждающей жидкости
Метрические размеры (мм)
| Код заказа | DC [мм] | APMX [мм] | RMPX [°] | CNSC | DCONMS [мм] | LF [мм] | LU [мм] | TQ [Нм] | RPMX [1/мин] |
|---|---|---|---|---|---|---|---|---|---|
| MS60-R025A25-11M | 25.00 | 5.0 | 3.10 | 1 | 25.00 | 120.00 | 38.00 | 0.9 | 13300 |
| MS60-R032A32-11H | 32.00 | 5.0 | 2.20 | 1 | 32.00 | 130.00 | 39.00 | 0.9 | 11800 |
| MS60-R032A32-11M | 32.00 | 5.0 | 2.20 | 1 | 32.00 | 130.00 | 39.00 | 0.9 | 11800 |
R = правое вращение, L = левое вращение
Дюймовые размеры (дюймы)
| Код заказа | DC [дюйм] | APMX [дюйм] | RMPX [°] | CNSC | DCONMS [дюйм] | LF [дюйм] | LU [дюйм] | TQ [фт·фунт] | RPMX [1/мин] |
|---|---|---|---|---|---|---|---|---|---|
| MS60-AR025O25-11M | 1.000 | 0.197 | 3.10 | 1 | 1.000 | 4.724 | 1.496 | 0.7 | 13200 |
| MS60-AR032O32-11M | 1.250 | 0.197 | 2.20 | 1 | 1.250 | 5.118 | 1.535 | 0.7 | 11800 |
R = правое вращение, L = левое вращение
