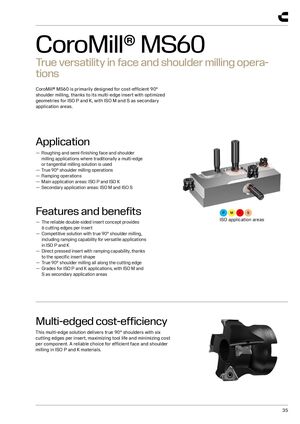

CoroMill® MS60 True versatility in face and shoulder milling opera- tions CoroMill® MS60 is primarily designed for cost-efficient 90° shoulder milling, thanks to its multi-edge insert with optimized geometries for ISO P and K, with ISO M and S as secondary application areas. Application — Roughing and semi-finishing face and shoulder milling applications where traditionally a multi-edge or tangential milling solution is used — True 90° shoulder milling operations — Ramping operations — Main application areas: ISO P and ISO K — Secondary application areas: ISO M and ISO S Features and benefits ISO application areas — The reliable double-sided insert concept provides 6 cutting edges per insert — Competitive solution with true 90° shoulder milling, including ramping capability for versatile applications in ISO P and K — Direct pressed insert with ramping capability, thanks to the specific insert shape — True 90° shoulder milling all along the cutting edge — Grades for ISO P and K applications, with ISO M and S as secondary application areas Multi-edged cost-efficiency This multi-edge solution delivers true 90° shoulders with six cutting edges per insert, maximizing tool life and minimizing cost per component. A reliable choice for efficient face and shoulder milling in ISO P and K materials. 35
