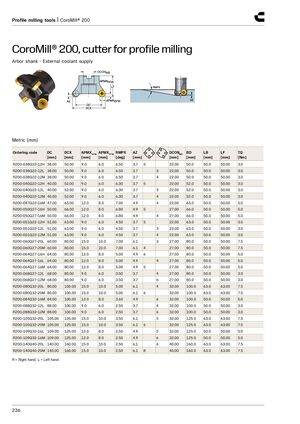

CoroMill® 200, cutter for profile milling
Arbor shank - External coolant supply
Metric (mm)
| Ordering code | DC [mm] | DCX [mm] | APMXEFW [mm] | APMXFFW [mm] | RMPX [deg] | AZ [mm] | DCONMS [mm] | BD [mm] | LB [mm] | LF [mm] | TQ [Nm] | ||
| R200-038Q22-12H | 38.00 | 50.00 | 9.0 | 6.0 | 6.50 | 3.7 | 5 | 22.00 | 50.0 | 50.0 | 50.00 | 3.0 | |
| R200-038Q22-12L | 38.00 | 50.00 | 9.0 | 6.0 | 6.50 | 3.7 | 3 | 22.00 | 50.0 | 50.0 | 50.00 | 3.0 | |
| R200-038Q22-12M | 38.00 | 50.00 | 9.0 | 6.0 | 6.50 | 3.7 | 4 | 22.00 | 50.0 | 50.0 | 50.00 | 3.0 | |
| R200-040Q22-12H | 40.00 | 52.00 | 9.0 | 6.0 | 6.30 | 3.7 | 5 | 22.00 | 52.0 | 50.0 | 50.00 | 3.0 | |
| R200-040Q22-12L | 40.00 | 52.00 | 9.0 | 6.0 | 6.30 | 3.7 | 3 | 22.00 | 52.0 | 50.0 | 50.00 | 3.0 | |
| R200-040Q22-12M | 40.00 | 52.00 | 9.0 | 6.0 | 6.30 | 3.7 | 4 | 22.00 | 52.0 | 50.0 | 50.00 | 3.0 | |
| R200-047Q22-16M | 47.00 | 63.00 | 12.0 | 8.0 | 7.00 | 4.9 | 4 | 22.00 | 63.0 | 50.0 | 50.00 | 5.0 | |
| R200-050Q27-16H | 50.00 | 66.00 | 12.0 | 8.0 | 6.80 | 4.9 | 5 | 27.00 | 66.0 | 50.0 | 50.00 | 5.0 | |
| R200-050Q27-16M | 50.00 | 66.00 | 12.0 | 8.0 | 6.80 | 4.9 | 4 | 27.00 | 66.0 | 50.0 | 50.00 | 5.0 | |
| R200-051Q22-12H | 51.00 | 63.00 | 9.0 | 6.0 | 4.50 | 3.7 | 5 | 22.00 | 63.0 | 50.0 | 50.00 | 3.0 | |
| R200-051Q22-12L | 51.00 | 63.00 | 9.0 | 6.0 | 4.50 | 3.7 | 3 | 22.00 | 63.0 | 50.0 | 50.00 | 3.0 | |
| R200-051Q22-12M | 51.00 | 63.00 | 9.0 | 6.0 | 4.50 | 3.7 | 4 | 22.00 | 63.0 | 50.0 | 50.00 | 3.0 | |
| R200-060Q27-20L | 60.00 | 80.00 | 15.0 | 10.0 | 7.00 | 6.1 | 3 | 27.00 | 80.0 | 50.0 | 50.00 | 7.5 | |
| R200-060Q27-20M | 60.00 | 80.00 | 15.0 | 10.0 | 7.00 | 6.1 | 4 | 27.00 | 80.0 | 50.0 | 50.00 | 7.5 | |
| R200-064Q27-16H | 64.00 | 80.00 | 12.0 | 8.0 | 5.00 | 4.9 | 6 | 27.00 | 80.0 | 50.0 | 50.00 | 5.0 | |
| R200-064Q27-16L | 64.00 | 80.00 | 12.0 | 8.0 | 5.00 | 4.9 | 4 | 27.00 | 80.0 | 50.0 | 50.00 | 5.0 | |
| R200-064Q27-16M | 64.00 | 80.00 | 12.0 | 8.0 | 5.00 | 4.9 | 5 | 27.00 | 80.0 | 50.0 | 50.00 | 5.0 | |
| R200-068Q27-12L | 68.00 | 80.00 | 9.0 | 6.0 | 3.50 | 3.7 | 4 | 27.00 | 80.0 | 50.0 | 50.00 | 3.0 | |
| R200-068Q27-12M | 68.00 | 80.00 | 9.0 | 6.0 | 3.50 | 3.7 | 6 | 27.00 | 80.0 | 50.0 | 50.00 | 3.0 | |
| R200-080Q32-20L | 80.00 | 100.00 | 15.0 | 10.0 | 5.00 | 6.1 | 4 | 32.00 | 100.0 | 63.0 | 63.00 | 7.5 | |
| R200-080Q32-20M | 80.00 | 100.00 | 15.0 | 10.0 | 5.00 | 6.1 | 6 | 32.00 | 100.0 | 63.0 | 63.00 | 7.5 | |
| R200-084Q32-16M | 84.00 | 100.00 | 12.0 | 8.0 | 3.60 | 4.9 | 6 | 32.00 | 100.0 | 50.0 | 50.00 | 5.0 | |
| R200-088Q32-12L | 88.00 | 100.00 | 9.0 | 6.0 | 2.50 | 3.7 | 4 | 32.00 | 100.0 | 50.0 | 50.00 | 3.0 | |
| R200-088Q32-12M | 88.00 | 100.00 | 9.0 | 6.0 | 2.50 | 3.7 | 6 | 32.00 | 100.0 | 50.0 | 50.00 | 3.0 | |
| R200-105Q32-20L | 105.00 | 125.00 | 15.0 | 10.0 | 3.50 | 6.1 | 5 | 32.00 | 125.0 | 63.0 | 63.00 | 7.5 | |
| R200-105Q32-20M | 105.00 | 125.00 | 15.0 | 10.0 | 3.50 | 6.1 | 6 | 32.00 | 125.0 | 63.0 | 63.00 | 7.5 | |
| R200-109Q32-16L | 109.00 | 125.00 | 12.0 | 8.0 | 2.50 | 4.9 | 5 | 32.00 | 125.0 | 50.0 | 50.00 | 5.0 | |
| R200-109Q32-16M | 109.00 | 125.00 | 12.0 | 8.0 | 2.50 | 4.9 | 6 | 32.00 | 125.0 | 50.0 | 50.00 | 5.0 | |
| R200-140Q40-20L | 140.00 | 160.00 | 15.0 | 10.0 | 2.50 | 6.1 | 6 | 40.00 | 160.0 | 63.0 | 63.00 | 7.5 | |
| R200-140Q40-20M | 140.00 | 160.00 | 15.0 | 10.0 | 2.50 | 6.1 | 8 | 40.00 | 160.0 | 63.0 | 63.00 | 7.5 |
R = Right hand, L = Left hand
