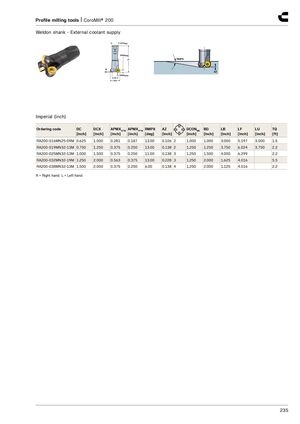

Weldon shank - External coolant supply
Imperial (inch)
| Ordering code | DC [inch] | DCX [inch] | APMXEF [inch] | W APMXFF [inch] | W RMPX [deg] | AZ [inch] | DCONMS [inch] | BD [inch] | LB [inch] | LF [inch] | LU [inch] | TQ [ft] | |
| RA200-016MN25-09M | 0.625 | 1.000 | 0.281 | 0.187 | 13.00 | 0.106 | 2 | 1.000 | 1.000 | 3.000 | 5.197 | 3.000 | 1.5 |
| RA200-019MN32-13M | 0.750 | 1.250 | 0.375 | 0.250 | 13.00 | 0.138 | 2 | 1.250 | 1.250 | 3.750 | 6.024 | 3.750 | 2.2 |
| RA200-025MN32-13M | 1.000 | 1.500 | 0.375 | 0.250 | 11.00 | 0.138 | 3 | 1.250 | 1.500 | 4.000 | 6.299 | 2.2 | |
| RA200-032MN32-19M | 1.250 | 2.000 | 0.563 | 0.375 | 13.00 | 0.228 | 3 | 1.250 | 2.000 | 1.625 | 4.016 | 5.5 | |
| RA200-038MN32-13M | 1.500 | 2.000 | 0.375 | 0.250 | 6.00 | 0.138 | 4 | 1.250 | 2.000 | 1.125 | 4.016 | 2.2 |
R = Right hand, L = Left hand
