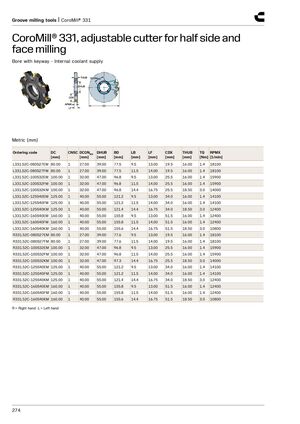

face milling
Bore with keyway - Internal coolant supply
Metric (mm)
| Ordering code | DC [mm] | CNSC | DCONMS [mm] | DHUB [mm] | BD [mm] | LB [mm] | LF [mm] | CDX [mm] | THUB [mm] | TQ [Nm] | RPMX [1/min] |
| L331.52C-080S27EM | 80.00 | 1 | 27.00 | 39.00 | 77.5 | 9.5 | 13.00 | 19.5 | 16.00 | 1.4 | 18100 |
| L331.52C-080S27FM | 80.00 | 1 | 27.00 | 39.00 | 77.5 | 11.5 | 14.00 | 19.5 | 16.00 | 1.4 | 18100 |
| L331.52C-100S32EM | 100.00 | 1 | 32.00 | 47.00 | 96.8 | 9.5 | 13.00 | 25.5 | 16.00 | 1.4 | 15900 |
| L331.52C-100S32FM | 100.00 | 1 | 32.00 | 47.00 | 96.8 | 11.5 | 14.00 | 25.5 | 16.00 | 1.4 | 15900 |
| L331.52C-100S32KM | 100.00 | 1 | 32.00 | 47.00 | 96.8 | 14.4 | 16.75 | 25.5 | 18.50 | 3.0 | 14000 |
| L331.52C-125S40EM | 125.00 | 1 | 40.00 | 55.00 | 121.2 | 9.5 | 13.00 | 34.0 | 16.00 | 1.4 | 14100 |
| L331.52C-125S40FM | 125.00 | 1 | 40.00 | 55.00 | 121.2 | 11.5 | 14.00 | 34.0 | 16.00 | 1.4 | 14100 |
| L331.52C-125S40KM | 125.00 | 1 | 40.00 | 55.00 | 121.4 | 14.4 | 16.75 | 34.0 | 18.50 | 3.0 | 12400 |
| L331.52C-160S40EM | 160.00 | 1 | 40.00 | 55.00 | 155.8 | 9.5 | 13.00 | 51.5 | 16.00 | 1.4 | 12400 |
| L331.52C-160S40FM | 160.00 | 1 | 40.00 | 55.00 | 155.8 | 11.5 | 14.00 | 51.5 | 16.00 | 1.4 | 12400 |
| L331.52C-160S40KM | 160.00 | 1 | 40.00 | 55.00 | 155.6 | 14.4 | 16.75 | 51.5 | 18.50 | 3.0 | 10800 |
| R331.52C-080S27EM | 80.00 | 1 | 27.00 | 39.00 | 77.6 | 9.5 | 13.00 | 19.5 | 16.00 | 1.4 | 18100 |
| R331.52C-080S27FM | 80.00 | 1 | 27.00 | 39.00 | 77.6 | 11.5 | 14.00 | 19.5 | 16.00 | 1.4 | 18100 |
| R331.52C-100S32EM | 100.00 | 1 | 32.00 | 47.00 | 96.8 | 9.5 | 13.00 | 25.5 | 16.00 | 1.4 | 15900 |
| R331.52C-100S32FM | 100.00 | 1 | 32.00 | 47.00 | 96.8 | 11.5 | 14.00 | 25.5 | 16.00 | 1.4 | 15900 |
| R331.52C-100S32KM | 100.00 | 1 | 32.00 | 47.00 | 97.3 | 14.4 | 16.75 | 25.5 | 18.50 | 3.0 | 14000 |
| R331.52C-125S40EM | 125.00 | 1 | 40.00 | 55.00 | 121.2 | 9.5 | 13.00 | 34.0 | 16.00 | 1.4 | 14100 |
| R331.52C-125S40FM | 125.00 | 1 | 40.00 | 55.00 | 121.2 | 11.5 | 14.00 | 34.0 | 16.00 | 1.4 | 14100 |
| R331.52C-125S40KM | 125.00 | 1 | 40.00 | 55.00 | 121.4 | 14.4 | 16.75 | 34.0 | 18.50 | 3.0 | 12400 |
| R331.52C-160S40EM | 160.00 | 1 | 40.00 | 55.00 | 155.8 | 9.5 | 13.00 | 51.5 | 16.00 | 1.4 | 12400 |
| R331.52C-160S40FM | 160.00 | 1 | 40.00 | 55.00 | 155.8 | 11.5 | 14.00 | 51.5 | 16.00 | 1.4 | 12400 |
| R331.52C-160S40KM | 160.00 | 1 | 40.00 | 55.00 | 155.6 | 14.4 | 16.75 | 51.5 | 18.50 | 3.0 | 10800 |
R = Right hand, L = Left hand
