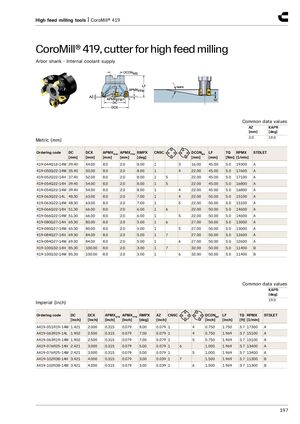

CoroMill® 419, cutter for high feed milling
Arbor shank - Internal coolant supply
Common data values
| AZ | KAPR |
| [mm] | [deg] |
| 2.0 | 19.0 |
| Ordering code DC [mm] | DCX [mm] | APMXEFW [mm] | APMXFFW [mm] | RMPX [deg] | CNSC | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | STDLET | ||
| 419-044Q16-14M 29.40 | 44.00 | 8.0 | 2.0 | 8.00 | 1 | 3 | 16.00 | 45.00 | 5.0 | 19300 | A | |
| 419-050Q22-14M 35.40 | 50.00 | 8.0 | 2.0 | 8.00 | 1 | 4 | 22.00 | 45.00 | 5.0 | 17600 | A | |
| 419-052Q22-14H 37.40 | 52.00 | 8.0 | 2.0 | 8.00 | 1 | 5 | 22.00 | 45.00 | 5.0 | 17100 | A | |
| 419-054Q22-14H 39.40 | 54.00 | 8.0 | 2.0 | 8.00 | 1 | 5 | 22.00 | 45.00 | 5.0 | 16800 | A | |
| 419-054Q22-14M 39.40 | 54.00 | 8.0 | 2.0 | 8.00 | 1 | 4 | 22.00 | 45.00 | 5.0 | 16800 | A | |
| 419-063Q22-14L 48.30 | 63.00 | 8.0 | 2.0 | 7.00 | 1 | 4 | 22.00 | 50.00 | 5.0 | 15100 | A | |
| 419-063Q22-14M 48.30 | 63.00 | 8.0 | 2.0 | 7.00 | 1 | 5 | 22.00 | 50.00 | 5.0 | 15100 | A | |
| 419-066Q22-14H 51.30 | 66.00 | 8.0 | 2.0 | 6.00 | 1 | 6 | 22.00 | 50.00 | 5.0 | 14600 | A | |
| 419-066Q22-14M 51.30 | 66.00 | 8.0 | 2.0 | 6.00 | 1 | 5 | 22.00 | 50.00 | 5.0 | 14600 | A | |
| 419-080Q27-14H 65.30 | 80.00 | 8.0 | 2.0 | 5.00 | 1 | 6 | 27.00 | 50.00 | 5.0 | 13000 | A | |
| 419-080Q27-14M 65.30 | 80.00 | 8.0 | 2.0 | 5.00 | 1 | 5 | 27.00 | 50.00 | 5.0 | 13000 | A | |
| 419-084Q27-14H 69.30 | 84.00 | 8.0 | 2.0 | 5.00 | 1 | 7 | 27.00 | 50.00 | 5.0 | 12600 | A | |
| 419-084Q27-14M 69.30 | 84.00 | 8.0 | 2.0 | 5.00 | 1 | 6 | 27.00 | 50.00 | 5.0 | 12600 | A | |
| 419-100Q32-14H 85.30 | 100.00 | 8.0 | 2.0 | 3.00 | 1 | 7 | 32.00 | 50.00 | 5.0 | 11400 | B | |
| 419-100Q32-14M 85.30 | 100.00 | 8.0 | 2.0 | 3.00 | 1 | 6 | 32.00 | 50.00 | 5.0 | 11400 | B |
Common data values
KAPR [deg] Imperial (inch) 19.0
| Ordering code | DC [inch] | DCX [inch] | APMXEF [inch] | W APMXFFW [inch] | RMPX [deg] | AZ [inch] CNS | C | DCONMS [inch] | LF [inch] | TQ [ft] RPMX [1/min] | STDLET | |
| A419-051R19-14M | 1.421 | 2.000 | 0.315 | 0.079 | 8.00 | 0.079 1 | 4 | 0.750 | 1.750 | 3.7 17300 | A | |
| A419-063R19-14L | 1.902 | 2.500 | 0.315 | 0.079 | 7.00 | 0.079 1 | 4 | 0.750 | 1.969 | 3.7 15100 | A | |
| A419-063R19-14M | 1.902 | 2.500 | 0.315 | 0.079 | 7.00 | 0.079 1 | 5 | 0.750 | 1.969 | 3.7 15100 | A | |
| A419-076R25-14H | 2.421 | 3.000 | 0.315 | 0.079 | 5.00 | 0.079 1 | 6 | 1.000 | 1.969 | 3.7 13400 | A | |
| A419-076R25-14M | 2.421 | 3.000 | 0.315 | 0.079 | 5.00 | 0.079 1 | 5 | 1.000 | 1.969 | 3.7 13400 | A | |
| A419-102R38-14H | 3.421 | 4.000 | 0.315 | 0.079 | 3.00 | 0.039 1 | 7 | 1.500 | 1.969 | 3.7 11300 | B | |
| A419-102R38-14M | 3.421 | 4.000 | 0.315 | 0.079 | 3.00 | 0.039 1 | 6 | 1.500 | 1.969 | 3.7 11300 | B |
