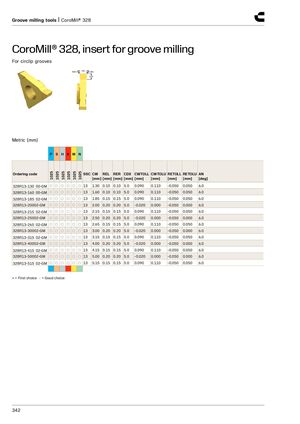

Groove milling tools | CoroMill® 328 CoroMill® 328, insert for groove milling For circlip grooves CW RER REL CDX Metric (mm) P S H K M N 1025 1025 1025 1025 1025 1025 Ordering code SSC CW REL RER CDX CWTOLL CWTOLU RETOLL RETOLU AN [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [deg] 328R13-130 00-GM ○ ○ ○ ○ ○ ○ 13 1.30 0.10 0.10 5.0 0.090 0.110 -0.050 0.050 6.0 328R13-160 00-GM ○ ○ ○ ○ ○ ○ 13 1.60 0.10 0.10 5.0 0.090 0.110 -0.050 0.050 6.0 328R13-185 02-GM ○ ○ ○ ○ ○ ○ 13 1.85 0.15 0.15 5.0 0.090 0.110 -0.050 0.050 6.0 328R13-20002-GM ○ ○ ○ ○ ○ ○ 13 2.00 0.20 0.20 5.0 -0.020 0.000 -0.050 0.000 6.0 328R13-215 02-GM ○ ○ ○ ○ ○ ○ 13 2.15 0.15 0.15 5.0 0.090 0.110 -0.050 0.050 6.0 328R13-25002-GM ○ ○ ○ ○ ○ ○ 13 2.50 0.20 0.20 5.0 -0.020 0.000 -0.050 0.000 6.0 328R13-265 02-GM ○ ○ ○ ○ ○ ○ 13 2.65 0.15 0.15 5.0 0.090 0.110 -0.050 0.050 6.0 328R13-30002-GM ○ ○ ○ ○ ○ ○ 13 3.00 0.20 0.20 5.0 -0.020 0.000 -0.050 0.000 6.0 328R13-315 02-GM ○ ○ ○ ○ ○ ○ 13 3.15 0.15 0.15 5.0 0.090 0.110 -0.050 0.050 6.0 328R13-40002-GM ○ ○ ○ ○ ○ ○ 13 4.00 0.20 0.20 5.0 -0.020 0.000 -0.050 0.000 6.0 328R13-415 02-GM ○ ○ ○ ○ ○ ○ 13 4.15 0.15 0.15 5.0 0.090 0.110 -0.050 0.050 6.0 328R13-50002-GM ○ ○ ○ ○ ○ ○ 13 5.00 0.20 0.20 5.0 -0.020 0.000 -0.050 0.000 6.0 328R13-515 02-GM ○ ○ ○ ○ ○ ○ 13 5.15 0.15 0.15 5.0 0.090 0.110 -0.050 0.050 6.0 ● = First choice ○ = Good choice 342
