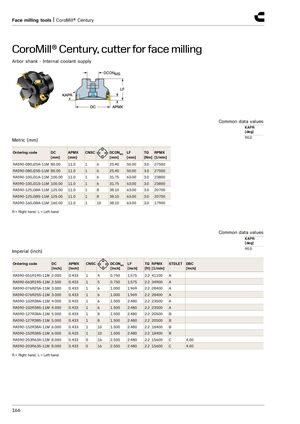

CoroMill® Century, cutter for face milling
Arbor shank - Internal coolant supply
Common data values
KAPR [deg] Metric (mm) 90.0
| Ordering code | DC [mm] | APMX [mm] | CNSC | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | |
| RA590-080J25A-11M | 80.00 | 11.0 | 1 | 6 | 25.40 | 50.00 | 3.0 | 27500 |
| RA590-080J25S-11M | 80.00 | 11.0 | 1 | 6 | 25.40 | 50.00 | 3.0 | 27500 |
| RA590-100J31A-11M | 100.00 | 11.0 | 1 | 6 | 31.75 | 63.00 | 3.0 | 23800 |
| RA590-100J31S-11M | 100.00 | 11.0 | 1 | 6 | 31.75 | 63.00 | 3.0 | 23800 |
| RA590-125J38A-11M | 125.00 | 11.0 | 1 | 8 | 38.10 | 63.00 | 3.0 | 20700 |
| RA590-125J38S-11M | 125.00 | 11.0 | 1 | 8 | 38.10 | 63.00 | 3.0 | 20700 |
| RA590-160J38A-11M | 160.00 | 11.0 | 1 | 10 | 38.10 | 63.00 | 3.0 | 17900 |
R = Right hand, L = Left hand
| Common data values | ||||||||||
| mperial (inch) | KAPR [deg] 90.0 | |||||||||
| Ordering code | DC [inch] | APMX [inch] | CNSC | DCONMS [inch] | LF [inch] | TQ [ft] RPMX [1/min] | STDLET | DBC [inch] | ||
| RA590-051R19S-11M | 2.000 | 0.433 | 1 | 4 | 0.750 | 1.575 | 2.2 41100 | A | ||
| RA590-063R19S-11M | 2.500 | 0.433 | 1 | 5 | 0.750 | 1.575 | 2.2 34900 | A | ||
| RA590-076R25A-11M | 3.000 | 0.433 | 1 | 6 | 1.000 | 1.969 | 2.2 28400 | A | ||
| RA590-076R25S-11M | 3.000 | 0.433 | 1 | 6 | 1.000 | 1.969 | 2.2 28400 | A | ||
| RA590-102R38A-11M | 4.000 | 0.433 | 1 | 6 | 1.500 | 2.480 | 2.2 23500 | A | ||
| RA590-102R38S-11M | 4.000 | 0.433 | 1 | 6 | 1.500 | 2.480 | 2.2 23500 | A | ||
| RA590-127R38A-11M | 5.000 | 0.433 | 1 | 8 | 1.500 | 2.480 | 2.2 20500 | B | ||
| RA590-127R38S-11M | 5.000 | 0.433 | 1 | 8 | 1.500 | 2.480 | 2.2 20500 | B | ||
| RA590-152R38A-11M | 6.000 | 0.433 | 1 | 10 | 1.500 | 2.480 | 2.2 18400 | B | ||
| RA590-152R38S-11M | 6.000 | 0.433 | 1 | 10 | 1.500 | 2.480 | 2.2 18400 | B | ||
| RA590-203R63A-11M | 8.000 | 0.433 | 0 | 16 | 2.500 | 2.480 | 2.2 15600 | C | 4.00 | |
| RA590-203R63S-11M | 8.000 | 0.433 | 0 | 16 | 2.500 | 2.480 | 2.2 15600 | C | 4.00 |
R = Right hand, L = Left hand
