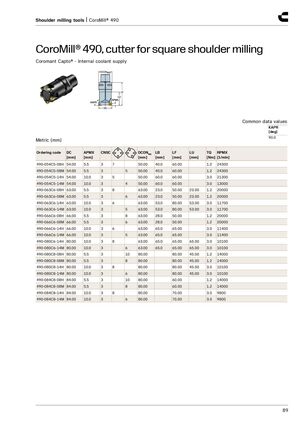

CoroMill® 490, cutter for square shoulder milling
Coromant Capto® - Internal coolant supply
| Common data values |
| KAPR |
| [deg] |
| 90.0 |
| Ordering code | DC [mm] | APMX [mm] | CNSC | DCONMS [mm] | LB [mm] | LF [mm] | LU [mm] | TQ [Nm] | RPMX [1/min] | ||
| 490-054C5-08H | 54.00 | 5.5 | 3 | 7 | 50.00 | 40.0 | 60.00 | 1.2 | 24300 | ||
| 490-054C5-08M | 54.00 | 5.5 | 3 | 5 | 50.00 | 40.0 | 60.00 | 1.2 | 24300 | ||
| 490-054C5-14H | 54.00 | 10.0 | 3 | 5 | 50.00 | 60.0 | 60.00 | 3.0 | 21300 | ||
| 490-054C5-14M | 54.00 | 10.0 | 3 | 4 | 50.00 | 60.0 | 60.00 | 3.0 | 13000 | ||
| 490-063C6-08H | 63.00 | 5.5 | 3 | 8 | 63.00 | 23.0 | 50.00 | 23.00 | 1.2 | 20000 | |
| 490-063C6-08M | 63.00 | 5.5 | 3 | 6 | 63.00 | 23.0 | 50.00 | 23.00 | 1.2 | 20000 | |
| 490-063C6-14H | 63.00 | 10.0 | 3 | 6 | 63.00 | 53.0 | 80.00 | 53.00 | 3.0 | 11700 | |
| 490-063C6-14M | 63.00 | 10.0 | 3 | 5 | 63.00 | 53.0 | 80.00 | 53.00 | 3.0 | 11700 | |
| 490-066C6-08H | 66.00 | 5.5 | 3 | 8 | 63.00 | 28.0 | 50.00 | 1.2 | 20000 | ||
| 490-066C6-08M | 66.00 | 5.5 | 3 | 6 | 63.00 | 28.0 | 50.00 | 1.2 | 20000 | ||
| 490-066C6-14H | 66.00 | 10.0 | 3 | 6 | 63.00 | 65.0 | 65.00 | 3.0 | 11400 | ||
| 490-066C6-14M | 66.00 | 10.0 | 3 | 5 | 63.00 | 65.0 | 65.00 | 3.0 | 11400 | ||
| 490-080C6-14H | 80.00 | 10.0 | 3 | 8 | 63.00 | 65.0 | 65.00 | 65.00 | 3.0 | 10100 | |
| 490-080C6-14M | 80.00 | 10.0 | 3 | 6 | 63.00 | 65.0 | 65.00 | 65.00 | 3.0 | 10100 | |
| 490-080C8-08H | 80.00 | 5.5 | 3 | 10 | 80.00 | 80.00 | 45.00 | 1.2 | 14000 | ||
| 490-080C8-08M | 80.00 | 5.5 | 3 | 8 | 80.00 | 80.00 | 45.00 | 1.2 | 14000 | ||
| 490-080C8-14H | 80.00 | 10.0 | 3 | 8 | 80.00 | 80.00 | 45.00 | 3.0 | 10100 | ||
| 490-080C8-14M | 80.00 | 10.0 | 3 | 6 | 80.00 | 80.00 | 45.00 | 3.0 | 10100 | ||
| 490-084C8-08H | 84.00 | 5.5 | 3 | 10 | 80.00 | 60.00 | 1.2 | 14000 | |||
| 490-084C8-08M | 84.00 | 5.5 | 3 | 8 | 80.00 | 60.00 | 1.2 | 14000 | |||
| 490-084C8-14H | 84.00 | 10.0 | 3 | 8 | 80.00 | 70.00 | 3.0 | 9800 | |||
| 490-084C8-14M | 84.00 | 10.0 | 3 | 6 | 80.00 | 70.00 | 3.0 | 9800 |
