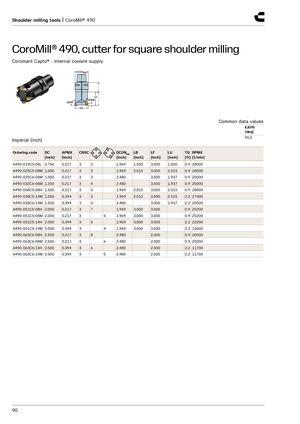

CoroMill® 490, cutter for square shoulder milling
Coromant Capto® - Internal coolant supply
Common data values
| mperial (inch) | KAPR [deg] 90.0 | |||||||||
| Ordering code DC [inch] | APMX [inch] | CNS | C | DCONMS [inch] | LB [inch] | LF [inch] | LU [inch] | TQ [ft] RPMX [1/min] | ||
| A490-019C5-08L 0.750 | 0.217 | 3 | 2 | 1.969 | 1.500 | 3.000 | 1.500 | 0.9 28000 | ||
| A490-025C5-08M 1.000 | 0.217 | 3 | 3 | 1.969 | 2.015 | 3.000 | 2.015 | 0.9 28000 | ||
| A490-025C6-08M 1.000 | 0.217 | 3 | 3 | 2.480 | 3.000 | 1.937 | 0.9 20000 | |||
| A490-032C6-08M 1.250 | 0.217 | 3 | 4 | 2.480 | 3.000 | 1.937 | 0.9 20000 | |||
| A490-038C5-08H 1.500 | 0.217 | 3 | 5 | 1.969 | 2.015 | 3.000 | 2.015 | 0.9 28000 | ||
| A490-038C5-14M 1.500 | 0.394 | 3 | 3 | 1.969 | 2.015 | 3.000 | 2.015 | 2.2 27400 | ||
| A490-038C6-14M 1.500 | 0.394 | 3 | 3 | 2.480 | 3.000 | 1.937 | 2.2 20000 | |||
| A490-051C5-08H 2.000 | 0.217 | 3 | 7 | 1.969 | 3.000 | 3.000 | 0.9 25200 | |||
| A490-051C5-08M 2.000 | 0.217 | 3 | 5 | 1.969 | 3.000 | 3.000 | 0.9 25200 | |||
| A490-051C5-14H 2.000 | 0.394 | 3 | 5 | 1.969 | 3.000 | 3.000 | 2.2 22200 | |||
| A490-051C5-14M 2.000 | 0.394 | 3 | 4 | 1.969 | 3.000 | 3.000 | 2.2 13600 | |||
| A490-063C6-08H 2.500 | 0.217 | 3 | 8 | 2.480 | 2.000 | 0.9 20000 | ||||
| A490-063C6-08M 2.500 | 0.217 | 3 | 6 | 2.480 | 2.000 | 0.9 20000 | ||||
| A490-063C6-14H 2.500 | 0.394 | 3 | 6 | 2.480 | 2.500 | 2.2 11700 | ||||
| A490-063C6-14M 2.500 | 0.394 | 3 | 5 | 2.480 | 2.500 | 2.2 11700 |
