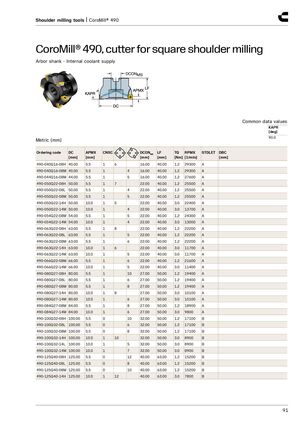

CoroMill® 490, cutter for square shoulder milling
Arbor shank - Internal coolant supply
Common data values
KAPR [deg] Metric (mm) 90.0
| Ordering code | DC [mm] | APMX [mm] | CNS | C | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | STDLET | DBC [mm] | |
| 490-040Q16-08H | 40.00 | 5.5 | 1 | 6 | 16.00 | 40.00 | 1.2 | 29300 | A | ||
| 490-040Q16-08M | 40.00 | 5.5 | 1 | 4 | 16.00 | 40.00 | 1.2 | 29300 | A | ||
| 490-044Q16-08M | 44.00 | 5.5 | 1 | 5 | 16.00 | 40.00 | 1.2 | 27600 | A | ||
| 490-050Q22-08H | 50.00 | 5.5 | 1 | 7 | 22.00 | 40.00 | 1.2 | 25500 | A | ||
| 490-050Q22-08L | 50.00 | 5.5 | 1 | 4 | 22.00 | 40.00 | 1.2 | 25500 | A | ||
| 490-050Q22-08M | 50.00 | 5.5 | 1 | 5 | 22.00 | 40.00 | 1.2 | 25500 | A | ||
| 490-050Q22-14H | 50.00 | 10.0 | 1 | 5 | 22.00 | 40.00 | 3.0 | 22400 | A | ||
| 490-050Q22-14M | 50.00 | 10.0 | 1 | 4 | 22.00 | 40.00 | 3.0 | 13700 | A | ||
| 490-054Q22-08M | 54.00 | 5.5 | 1 | 5 | 22.00 | 40.00 | 1.2 | 24300 | A | ||
| 490-054Q22-14M | 54.00 | 10.0 | 1 | 4 | 22.00 | 40.00 | 3.0 | 13000 | A | ||
| 490-063Q22-08H | 63.00 | 5.5 | 1 | 8 | 22.00 | 40.00 | 1.2 | 22200 | A | ||
| 490-063Q22-08L | 63.00 | 5.5 | 1 | 5 | 22.00 | 40.00 | 1.2 | 22200 | A | ||
| 490-063Q22-08M | 63.00 | 5.5 | 1 | 6 | 22.00 | 40.00 | 1.2 | 22200 | A | ||
| 490-063Q22-14H | 63.00 | 10.0 | 1 | 6 | 22.00 | 40.00 | 3.0 | 11700 | A | ||
| 490-063Q22-14M | 63.00 | 10.0 | 1 | 5 | 22.00 | 40.00 | 3.0 | 11700 | A | ||
| 490-066Q22-08M | 66.00 | 5.5 | 1 | 6 | 22.00 | 40.00 | 1.2 | 21600 | A | ||
| 490-066Q22-14M | 66.00 | 10.0 | 1 | 5 | 22.00 | 40.00 | 3.0 | 11400 | A | ||
| 490-080Q27-08H | 80.00 | 5.5 | 1 | 10 | 27.00 | 50.00 | 1.2 | 19400 | A | ||
| 490-080Q27-08L | 80.00 | 5.5 | 1 | 6 | 27.00 | 50.00 | 1.2 | 19400 | A | ||
| 490-080Q27-08M | 80.00 | 5.5 | 1 | 8 | 27.00 | 50.00 | 1.2 | 19400 | A | ||
| 490-080Q27-14H | 80.00 | 10.0 | 1 | 8 | 27.00 | 50.00 | 3.0 | 10100 | A | ||
| 490-080Q27-14M | 80.00 | 10.0 | 1 | 6 | 27.00 | 50.00 | 3.0 | 10100 | A | ||
| 490-084Q27-08M | 84.00 | 5.5 | 1 | 8 | 27.00 | 50.00 | 1.2 | 18900 | A | ||
| 490-084Q27-14M | 84.00 | 10.0 | 1 | 6 | 27.00 | 50.00 | 3.0 | 9800 | A | ||
| 490-100Q32-08H | 100.00 | 5.5 | 0 | 10 | 32.00 | 50.00 | 1.2 | 17100 | B | ||
| 490-100Q32-08L | 100.00 | 5.5 | 0 | 6 | 32.00 | 50.00 | 1.2 | 17100 | B | ||
| 490-100Q32-08M | 100.00 | 5.5 | 0 | 8 | 32.00 | 50.00 | 1.2 | 17100 | B | ||
| 490-100Q32-14H | 100.00 | 10.0 | 1 | 10 | 32.00 | 50.00 | 3.0 | 8900 | B | ||
| 490-100Q32-14L | 100.00 | 10.0 | 1 | 5 | 32.00 | 50.00 | 3.0 | 8900 | B | ||
| 490-100Q32-14M | 100.00 | 10.0 | 1 | 7 | 32.00 | 50.00 | 3.0 | 8900 | B | ||
| 490-125Q40-08H | 125.00 | 5.5 | 0 | 12 | 40.00 | 63.00 | 1.2 | 15200 | B | ||
| 490-125Q40-08L | 125.00 | 5.5 | 0 | 8 | 40.00 | 63.00 | 1.2 | 15200 | B | ||
| 490-125Q40-08M | 125.00 | 5.5 | 0 | 10 | 40.00 | 63.00 | 1.2 | 15200 | B | ||
| 490-125Q40-14H | 125.00 | 10.0 | 1 | 12 | 40.00 | 63.00 | 3.0 | 7800 | B |
