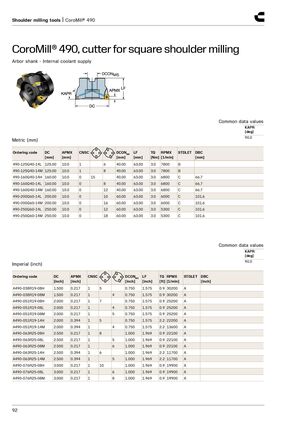

CoroMill® 490, cutter for square shoulder milling
Arbor shank - Internal coolant supply
Common data values
KAPR [deg] Metric (mm) 90.0
| Ordering code | DC [mm] | APMX [mm] | CNS | C | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | STDLET | DBC [mm] | |
| 490-125Q40-14L | 125.00 | 10.0 | 1 | 6 | 40.00 | 63.00 | 3.0 | 7800 | B | ||
| 490-125Q40-14M | 125.00 | 10.0 | 1 | 8 | 40.00 | 63.00 | 3.0 | 7800 | B | ||
| 490-160Q40-14H | 160.00 | 10.0 | 0 | 15 | 40.00 | 63.00 | 3.0 | 6800 | C | 66.7 | |
| 490-160Q40-14L | 160.00 | 10.0 | 0 | 8 | 40.00 | 63.00 | 3.0 | 6800 | C | 66.7 | |
| 490-160Q40-14M | 160.00 | 10.0 | 0 | 12 | 40.00 | 63.00 | 3.0 | 6800 | C | 66.7 | |
| 490-200Q60-14L | 200.00 | 10.0 | 0 | 10 | 60.00 | 63.00 | 3.0 | 6000 | C | 101.6 | |
| 490-200Q60-14M | 200.00 | 10.0 | 0 | 16 | 60.00 | 63.00 | 3.0 | 6000 | C | 101.6 | |
| 490-250Q60-14L | 250.00 | 10.0 | 0 | 12 | 60.00 | 63.00 | 3.0 | 5300 | C | 101.6 | |
| 490-250Q60-14M | 250.00 | 10.0 | 0 | 18 | 60.00 | 63.00 | 3.0 | 5300 | C | 101.6 |
Common data values
| mperial (inch) | KAPR [deg] 90.0 | ||||||||||
| Ordering code | DC [inch] | APMX [inch] | CNS | C | DCONMS [inch] | LF [inch] | TQ [ft] RPMX [1/min] | STDLET | DBC [inch] | ||
| A490-038R19-08H | 1.500 | 0.217 | 1 | 5 | 0.750 | 1.575 | 0.9 30200 | A | |||
| A490-038R19-08M | 1.500 | 0.217 | 1 | 4 | 0.750 | 1.575 | 0.9 30200 | A | |||
| A490-051R19-08H | 2.000 | 0.217 | 1 | 7 | 0.750 | 1.575 | 0.9 25200 | A | |||
| A490-051R19-08L | 2.000 | 0.217 | 1 | 4 | 0.750 | 1.575 | 0.9 25200 | A | |||
| A490-051R19-08M | 2.000 | 0.217 | 1 | 5 | 0.750 | 1.575 | 0.9 25200 | A | |||
| A490-051R19-14H | 2.000 | 0.394 | 1 | 5 | 0.750 | 1.575 | 2.2 22200 | A | |||
| A490-051R19-14M | 2.000 | 0.394 | 1 | 4 | 0.750 | 1.575 | 2.2 13600 | A | |||
| A490-063R25-08H | 2.500 | 0.217 | 1 | 8 | 1.000 | 1.969 | 0.9 22100 | A | |||
| A490-063R25-08L | 2.500 | 0.217 | 1 | 5 | 1.000 | 1.969 | 0.9 22100 | A | |||
| A490-063R25-08M | 2.500 | 0.217 | 1 | 6 | 1.000 | 1.969 | 0.9 22100 | A | |||
| A490-063R25-14H | 2.500 | 0.394 | 1 | 6 | 1.000 | 1.969 | 2.2 11700 | A | |||
| A490-063R25-14M | 2.500 | 0.394 | 1 | 5 | 1.000 | 1.969 | 2.2 11700 | A | |||
| A490-076R25-08H | 3.000 | 0.217 | 1 | 10 | 1.000 | 1.969 | 0.9 19900 | A | |||
| A490-076R25-08L | 3.000 | 0.217 | 1 | 6 | 1.000 | 1.969 | 0.9 19900 | A | |||
| A490-076R25-08M | 3.000 | 0.217 | 1 | 8 | 1.000 | 1.969 | 0.9 19900 | A |
