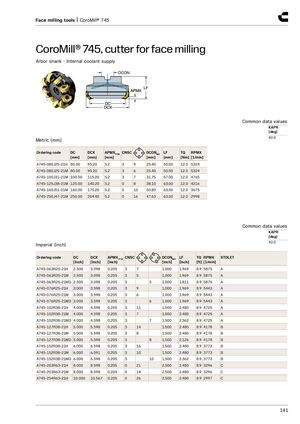

CoroMill® 745, cutter for face milling
Arbor shank - Internal coolant supply
Common data values
KAPR [deg] Metric (mm) 42.0
| Ordering code | DC [mm] | DCX [mm] | APMXFFW [mm] | CNSC | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | |
| A745-080J25-21H | 80.00 | 95.20 | 5.2 | 3 | 9 | 25.40 | 50.00 | 12.0 | 5324 |
| A745-080J25-21M | 80.00 | 95.20 | 5.2 | 3 | 6 | 25.40 | 50.00 | 12.0 | 5324 |
| A745-100J31-21M | 100.00 | 115.20 | 5.2 | 3 | 7 | 31.75 | 57.00 | 12.0 | 4765 |
| A745-125J38-21M | 125.00 | 140.20 | 5.2 | 0 | 8 | 38.10 | 63.00 | 12.0 | 4216 |
| A745-160J51-21M | 160.00 | 175.20 | 5.2 | 0 | 10 | 50.80 | 63.00 | 12.0 | 3675 |
| A745-250J47-21M | 250.00 | 264.40 | 5.2 | 0 | 16 | 47.63 | 63.00 | 12.0 | 2998 |
| Common data values |
| KAPR |
| [deg] |
| 42.0 |
| Ordering code | DC [inch] | DCX [inch] | APMXFFW [inch] | CNSC | DCONMS [inch] | LF [inch] | TQ [ft] | RPMX [1/min] | STDLET | ||
| A745-063R25-21H | 2.500 | 3.098 | 0.205 | 3 | 7 | 1.000 | 1.969 | 8.9 | 5875 | A | |
| A745-063R25-21M | 2.500 | 3.098 | 0.205 | 3 | 5 | 1.000 | 1.969 | 8.9 | 5875 | A | |
| A745-063R25-21MD | 2.500 | 3.098 | 0.205 | 3 | 5 | 1.000 | 1.811 | 8.9 | 5875 | A | |
| A745-076R25-21H | 3.000 | 3.598 | 0.205 | 3 | 9 | 1.000 | 1.969 | 8.9 | 5443 | A | |
| A745-076R25-21M | 3.000 | 3.598 | 0.205 | 3 | 6 | 1.000 | 1.969 | 8.9 | 5443 | A | |
| A745-076R25-21MD | 3.000 | 3.598 | 0.205 | 3 | 6 | 1.000 | 1.969 | 8.9 | 5443 | A | |
| A745-102R38-21H | 4.000 | 4.598 | 0.205 | 3 | 11 | 1.500 | 2.480 | 8.9 | 4725 | A | |
| A745-102R38-21M | 4.000 | 4.598 | 0.205 | 3 | 7 | 1.500 | 2.480 | 8.9 | 4725 | A | |
| A745-102R38-21MD | 4.000 | 4.598 | 0.205 | 3 | 7 | 1.500 | 2.362 | 8.9 | 4725 | A | |
| A745-127R38-21H | 5.000 | 5.598 | 0.205 | 3 | 14 | 1.500 | 2.480 | 8.9 | 4178 | B | |
| A745-127R38-21M | 5.000 | 5.598 | 0.205 | 3 | 8 | 1.500 | 2.480 | 8.9 | 4178 | B | |
| A745-127R38-21MD | 5.000 | 5.598 | 0.205 | 3 | 8 | 1.500 | 2.126 | 8.9 | 4178 | B | |
| A745-152R38-21H | 6.000 | 6.598 | 0.205 | 3 | 16 | 1.500 | 2.480 | 8.9 | 3773 | B | |
| A745-152R38-21M | 6.000 | 6.591 | 0.205 | 3 | 10 | 1.500 | 2.480 | 8.9 | 3773 | B | |
| A745-152R38-21MD | 6.000 | 6.598 | 0.205 | 3 | 10 | 1.500 | 2.362 | 8.9 | 3773 | B | |
| A745-203R63-21H | 8.000 | 8.598 | 0.205 | 0 | 21 | 2.500 | 2.480 | 8.9 | 3296 | C | |
| A745-203R63-21M | 8.000 | 8.598 | 0.205 | 0 | 14 | 2.500 | 2.480 | 8.9 | 3296 | C | |
| A745-254R63-21H | 10.000 | 10.567 | 0.205 | 0 | 26 | 2.500 | 2.480 | 8.9 | 2997 | C |
