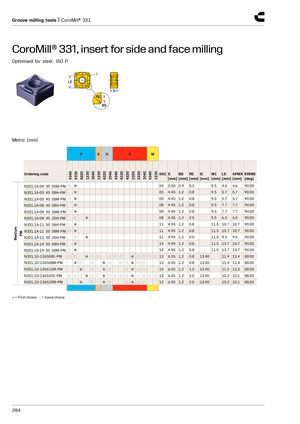

CoroMill® 331, insert for side and face milling
Optimised for steel, ISO P
IC
Metric (mm)
| P | S H | K | M | |||||||||
| Ordering code | 4340 4330 4220 1230 3040 | 1230 4220 3040 4340 | 4330 4220 | 1020 3330 3040 4340 1230 | SSC | S [mm] | BS [mm] | RE [mm] | IC [mm] W1 [mm] | LE [mm] | APMX [mm] | KRINS [deg] |
| N331.1A-04 35 05M-PM | ○● | 04 | 3.50 | 0.4 | 0.5 | 9.5 | 4.6 | 4.6 | 90.00 | |||
| N331.1A-05 45 08H-PM | ● | 05 | 4.45 | 1.2 | 0.8 | 9.5 | 5.7 | 5.7 | 90.00 | |||
| N331.1A-05 45 08M-PM | ○● | 05 | 4.45 | 1.2 | 0.8 | 9.5 | 5.7 | 5.7 | 90.00 | |||
| N331.1A-08 45 08H-PM | ● | 08 | 4.45 | 1.2 | 0.8 | 9.5 | 7.7 | 7.7 | 90.00 | |||
| N331.1A-08 45 08M-PM | ○● | 08 | 4.45 | 1.2 | 0.8 | 9.5 | 7.7 | 7.7 | 90.00 | |||
| N331.1A-08 45 20H-PM | ○ ● | 08 | 4.45 | 1.2 | 2.0 | 9.5 | 6.5 | 6.5 | 90.00 | |||
| N331.1A-11 50 08H-PM | ● | 11 | 4.95 | 1.2 | 0.8 | 11.5 | 10.7 | 10.7 | 90.00 | |||
| dium M N331.1A-11 50 08M-PM | ○● | 11 | 4.95 | 1.2 | 0.8 | 11.5 | 10.7 | 10.7 | 90.00 | |||
| Me P N331.1A-11 50 20H-PM | ○ ● | 11 | 4.95 | 1.2 | 2.0 | 11.5 | 9.5 | 9.5 | 90.00 | |||
| N331.1A-14 50 08H-PM | ● | 14 | 4.95 | 1.2 | 0.8 | 11.5 | 13.7 | 13.7 | 90.00 | |||
| N331.1A-14 50 08M-PM | ○● | 14 | 4.95 | 1.2 | 0.8 | 11.5 | 13.7 | 13.7 | 90.00 | |||
| N331.1D-136508E-PM | ○○ ●○ | ○ ○○ | ○ | ●○○○○ | 13 | 6.55 | 1.2 | 0.8 | 13.40 | 11.4 | 11.4 | 88.00 |
| N331.1D-136508M-PM | ●○ ○ | ●○ | ○○ | ●○○ | 13 | 6.55 | 1.2 | 0.8 | 13.40 | 11.4 | 11.4 | 88.00 |
| N331.1D-136512M-PM | ● ○ | ●○ | ○ | ●○○ | 13 | 6.55 | 1.2 | 1.2 | 13.40 | 11.0 | 11.0 | 88.00 |
| N331.1D-136520E-PM | ○○○●○ | ○●○○ | ○○ | ●○○○○ | 13 | 6.55 | 1.2 | 2.0 | 13.40 | 10.2 | 10.1 | 88.00 |
| N331.1D-136520M-PM | ● ○ | ●○ | ○ | ●○○ | 13 | 6.55 | 1.2 | 2.0 | 13.40 | 10.2 | 10.1 | 88.00 |
- = First choice = Good choice
