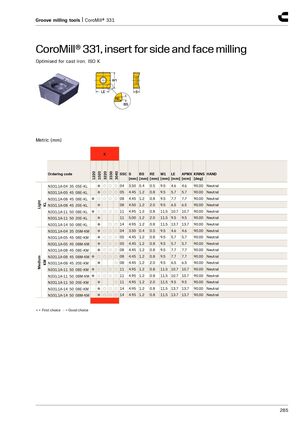

CoroMill® 331, insert for side and face milling
Optimised for cast iron, ISO K
Metric (mm)
K
| Ordering code | 1220 | 1020 | 3220 3330 | 3040 | SSC | S [mm] | BS [mm] | RE [mm] | W1 [mm] | LE [mm] | APMX [mm] | KRINS [deg] | HAND |
| N331.1A-04 35 05E-KL | ● | ○○ | ○ | 04 | 3.50 | 0.4 | 0.5 | 9.5 | 4.6 | 4.6 | 90.00 | Neutral | |
| N331.1A-05 45 08E-KL | ● | ○○ | ○ | 05 | 4.45 | 1.2 | 0.8 | 9.5 | 5.7 | 5.7 | 90.00 | Neutral | |
| t N331.1A-08 45 08E-KL | ● | ○ | ○○ | ○ | 08 | 4.45 | 1.2 | 0.8 | 9.5 | 7.7 | 7.7 | 90.00 | Neutral |
| Ligh KL N331.1A-08 45 20E-KL | ● | 08 | 4.50 | 1.2 | 2.0 | 9.5 | 6.5 | 6.5 | 90.00 | Neutral | |||
| N331.1A-11 50 08E-KL | ● | ○ | ○○ | ○ | 11 | 4.95 | 1.2 | 0.8 | 11.5 | 10.7 | 10.7 | 90.00 | Neutral |
| N331.1A-11 50 20E-KL | ● | 11 | 5.00 | 1.2 | 2.0 | 11.5 | 9.5 | 9.5 | 90.00 | Neutral | |||
| N331.1A-14 50 08E-KL | ● | ○ | ○ | 14 | 4.95 | 1.2 | 0.8 | 11.5 | 13.7 | 13.7 | 90.00 | Neutral | |
| N331.1A-04 35 05M-KM | ● | ○○ | ○ | 04 | 3.50 | 0.4 | 0.5 | 9.5 | 4.6 | 4.6 | 90.00 | Neutral | |
| N331.1A-05 45 08E-KM | ● | ○○ | ○ | 05 | 4.45 | 1.2 | 0.8 | 9.5 | 5.7 | 5.7 | 90.00 | Neutral | |
| N331.1A-05 45 08M-KM | ● | ○○ | ○ | 05 | 4.45 | 1.2 | 0.8 | 9.5 | 5.7 | 5.7 | 90.00 | Neutral | |
| N331.1A-08 45 08E-KM | ● | ○○ | ○ | 08 | 4.45 | 1.2 | 0.8 | 9.5 | 7.7 | 7.7 | 90.00 | Neutral | |
| m N331.1A-08 45 08M-KM | ● | ○ | ○○ | ○ | 08 | 4.45 | 1.2 | 0.8 | 9.5 | 7.7 | 7.7 | 90.00 | Neutral |
| ediu KM N331.1A-08 45 20E-KM | ● | ○ | 08 | 4.45 | 1.2 | 2.0 | 9.5 | 6.5 | 6.5 | 90.00 | Neutral | ||
| M N331.1A-11 50 08E-KM | ● | ○ | ○○ | ○ | 11 | 4.95 | 1.2 | 0.8 | 11.5 | 10.7 | 10.7 | 90.00 | Neutral |
| N331.1A-11 50 08M-KM | ● | ○ | ○○ | ○ | 11 | 4.95 | 1.2 | 0.8 | 11.5 | 10.7 | 10.7 | 90.00 | Neutral |
| N331.1A-11 50 20E-KM | ● | ○ | 11 | 4.95 | 1.2 | 2.0 | 11.5 | 9.5 | 9.5 | 90.00 | Neutral | ||
| N331.1A-14 50 08E-KM | ● | ○○ | ○ | 14 | 4.95 | 1.2 | 0.8 | 11.5 | 13.7 | 13.7 | 90.00 | Neutral | |
| N331.1A-14 50 08M-KM | ● | ○○ | ○ | 14 | 4.95 | 1.2 | 0.8 | 11.5 | 13.7 | 13.7 | 90.00 | Neutral |
- = First choice ○ = Good choice
