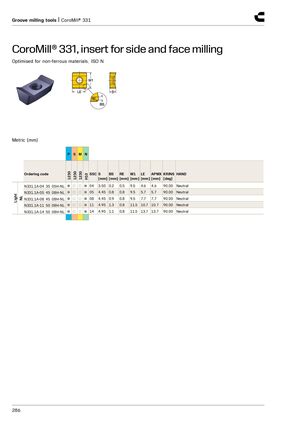

CoroMill® 331, insert for side and face milling
Optimised for non-ferrous materials, ISO N
Metric (mm)
| P | S | M | N | |||||||||||
| Ordering code | 1230 | 1230 | 1230 | H10 | SSC | S [mm] | BS [mm] | RE [mm | ] W1 [mm] | LE [mm] | APMX [mm] | KRINS [deg] | HAND | |
| N331.1A-04 35 05H-NL | ● | ○ | ○ | ● | 04 | 3.50 | 0.2 | 0.5 | 9.5 | 4.6 | 4.6 | 90.00 | Neutral | |
| t | N331.1A-05 45 08H-NL | ● | ○ | ○ | ● | 05 | 4.45 | 0.8 | 0.8 | 9.5 | 5.7 | 5.7 | 90.00 | Neutral |
| Ligh NL | N331.1A-08 45 08H-NL | ● | ○ | ○ | ● | 08 | 4.45 | 0.9 | 0.8 | 9.5 | 7.7 | 7.7 | 90.00 | Neutral |
| N331.1A-11 50 08H-NL | ● | ○ | ○ | ● | 11 | 4.95 | 1.3 | 0.8 | 11.5 | 10.7 | 10.7 | 90.00 | Neutral | |
| N331.1A-14 50 08H-NL | ● | ○ | ○ | ● | 14 | 4.95 | 1.1 | 0.8 | 11.5 | 13.7 | 13.7 | 90.00 | Neutral |
