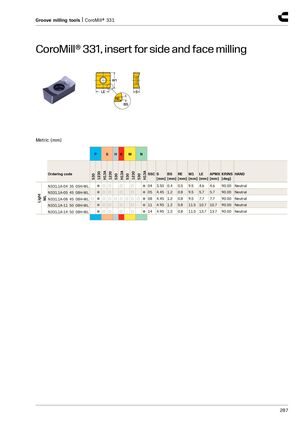

CoroMill® 331, insert for side and face milling
Metric (mm)
| P | S | H K | M | N | ||||||||||
| Ordering code | 530 1230 | H13A 1230 | 530 H13A | 530 1230 | 530 H13A SSC | S [mm] | BS [mm] | RE [mm] | W1 [mm] | LE [mm] | APMX [mm] | KRINS [deg] | HAND | |
| N331.1A-04 35 05H-WL | ● | ○○ | ○ | ○ | ●04 | 3.50 | 0.4 | 0.5 | 9.5 | 4.6 | 4.6 | 90.00 | Neutral | |
| t | N331.1A-05 45 08H-WL | ● | ○○ | ○ | ○ | ●05 | 4.45 | 1.2 | 0.8 | 9.5 | 5.7 | 5.7 | 90.00 | Neutral |
| Ligh WL | N331.1A-08 45 08H-WL | ○● | ○○ | ○○ | ○○ | ○●08 | 4.45 | 1.2 | 0.8 | 9.5 | 7.7 | 7.7 | 90.00 | Neutral |
| N331.1A-11 50 08H-WL | ● | ○○ | ○ | ○ | ●11 | 4.95 | 1.2 | 0.8 | 11.5 | 10.7 | 10.7 | 90.00 | Neutral | |
| N331.1A-14 50 08H-WL | ● | ○○ | ○ | ○ | ●14 | 4.95 | 1.2 | 0.8 | 11.5 | 13.7 | 13.7 | 90.00 | Neutral |
