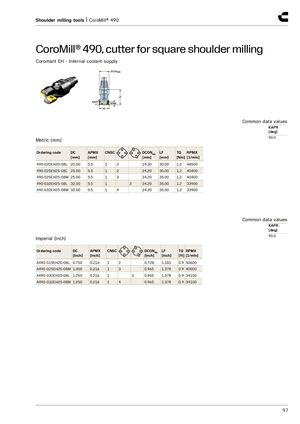

CoroMill® 490, cutter for square shoulder milling
Coromant EH - Internal coolant supply
Common data values
KAPR [deg] Metric (mm) 90.0
| Ordering code | DC [mm] | APMX [mm] | CNSC | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | ||
| 490-020EH20-08L | 20.00 | 5.5 | 1 | 2 | 19.30 | 30.00 | 1.2 | 48500 | |
| 490-025EH25-08L | 25.00 | 5.5 | 1 | 2 | 24.20 | 35.00 | 1.2 | 40400 | |
| 490-025EH25-08M | 25.00 | 5.5 | 1 | 3 | 24.20 | 35.00 | 1.2 | 40400 | |
| 490-032EH25-08L | 32.00 | 5.5 | 1 | 3 | 24.20 | 35.00 | 1.2 | 33900 | |
| 490-032EH25-08M | 32.00 | 5.5 | 1 | 4 | 24.20 | 35.00 | 1.2 | 33900 |
Common data values
KAPR [deg] Imperial (inch) 90.0
| Ordering code | DC [inch] | APMX [inch] | CNSC | DCONMS [inch] | LF [inch] | TQ [ft] RPMX [1/min] | ||
| A490-019EH20-08L | 0.750 | 0.216 | 1 | 2 | 0.728 | 1.181 | 0.9 50600 | |
| A490-025EH25-08M | 1.000 | 0.216 | 1 | 3 | 0.965 | 1.378 | 0.9 40000 | |
| A490-032EH25-08L | 1.250 | 0.216 | 1 | 3 | 0.965 | 1.378 | 0.9 34100 | |
| A490-032EH25-08M | 1.250 | 0.216 | 1 | 4 | 0.965 | 1.378 | 0.9 34100 |
