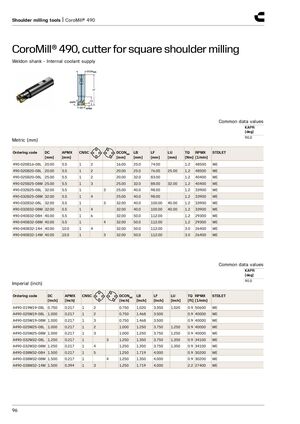

CoroMill® 490, cutter for square shoulder milling
Weldon shank - Internal coolant supply
Common data values
| KAPR [deg] |
| 90.0 |
| Ordering code | DC [mm] | APMX [mm] | CNS | C | DCONMS [mm] | LB [mm] | LF [mm] | LU [mm] | TQ [Nm] | RPMX [1/min] | STDLET | |
| 490-020B16-08L | 20.00 | 5.5 | 1 | 2 | 16.00 | 25.0 | 74.00 | 1.2 | 48500 | WE | ||
| 490-020B20-08L | 20.00 | 5.5 | 1 | 2 | 20.00 | 25.0 | 76.00 | 25.00 | 1.2 | 48500 | WE | |
| 490-025B20-08L | 25.00 | 5.5 | 1 | 2 | 20.00 | 32.0 | 83.00 | 1.2 | 40400 | WE | ||
| 490-025B25-08M | 25.00 | 5.5 | 1 | 3 | 25.00 | 32.0 | 88.00 | 32.00 | 1.2 | 40400 | WE | |
| 490-032B25-08L | 32.00 | 5.5 | 1 | 3 | 25.00 | 40.0 | 98.00 | 1.2 | 33900 | WE | ||
| 490-032B25-08M | 32.00 | 5.5 | 1 | 4 | 25.00 | 40.0 | 98.00 | 1.2 | 33900 | WE | ||
| 490-032B32-08L | 32.00 | 5.5 | 1 | 3 | 32.00 | 40.0 | 100.00 | 40.00 | 1.2 | 33900 | WE | |
| 490-032B32-08M | 32.00 | 5.5 | 1 | 4 | 32.00 | 40.0 | 100.00 | 40.00 | 1.2 | 33900 | WE | |
| 490-040B32-08H | 40.00 | 5.5 | 1 | 6 | 32.00 | 50.0 | 112.00 | 1.2 | 29300 | WE | ||
| 490-040B32-08M | 40.00 | 5.5 | 1 | 4 | 32.00 | 50.0 | 112.00 | 1.2 | 29300 | WE | ||
| 490-040B32-14H | 40.00 | 10.0 | 1 | 4 | 32.00 | 50.0 | 112.00 | 3.0 | 26400 | WE | ||
| 490-040B32-14M | 40.00 | 10.0 | 1 | 3 | 32.00 | 50.0 | 112.00 | 3.0 | 26400 | WE |
Common data values
| mperial (inch) | KAPR [deg] 90.0 | |||||||||||
| Ordering code | DC [inch] | APMX [inch] | CNSC | DCONMS [inch] | LB [inch] | LF [inch] | LU [inch] | TQ [ft] RPMX [1/min] | STDLET | |||
| A490-019M19-08L | 0.750 | 0.217 | 1 | 2 | 0.750 | 1.020 | 3.350 | 1.020 | 0.9 50600 | WE | ||
| A490-025M19-08L | 1.000 | 0.217 | 1 | 2 | 0.750 | 1.468 | 3.500 | 0.9 40000 | WE | |||
| A490-025M19-08M | 1.000 | 0.217 | 1 | 3 | 0.750 | 1.468 | 3.500 | 0.9 40000 | WE | |||
| A490-025M25-08L | 1.000 | 0.217 | 1 | 2 | 1.000 | 1.250 | 3.750 | 1.250 | 0.9 40000 | WE | ||
| A490-025M25-08M | 1.000 | 0.217 | 1 | 3 | 1.000 | 1.250 | 3.750 | 1.250 | 0.9 40000 | WE | ||
| A490-032M32-08L | 1.250 | 0.217 | 1 | 3 | 1.250 | 1.350 | 3.750 | 1.350 | 0.9 34100 | WE | ||
| A490-032M32-08M | 1.250 | 0.217 | 1 | 4 | 1.250 | 1.350 | 3.750 | 1.350 | 0.9 34100 | WE | ||
| A490-038M32-08H | 1.500 | 0.217 | 1 | 5 | 1.250 | 1.719 | 4.000 | 0.9 30200 | WE | |||
| A490-038M32-08M | 1.500 | 0.217 | 1 | 4 | 1.250 | 1.350 | 4.000 | 0.9 30200 | WE | |||
| A490-038M32-14M | 1.500 | 0.394 | 1 | 3 | 1.250 | 1.719 | 4.000 | 2.2 27400 | WE |
