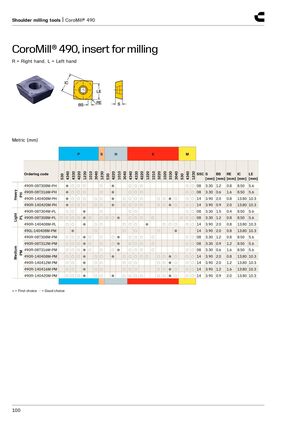

CoroMill® 490, insert for milling
R = Right hand, L = Left hand
Metric (mm)
| P | S | H | K | M | ||||||||||||
| Ordering code | 530 4340 4330 | 4220 1230 1010 | 3040 1230 | 530 4220 | 1010 3040 4340 | 4330 4220 1220 | 1010 3220 1020 | 3330 3040 | 530 4340 | 1230 SSC | S [mm] | BS [mm | ] RE [mm | ] IC [mm] | LE [mm] | |
| 490R-08T308M-PH | ●○ | ○○ | ○ | ● | ○ | ○○ | ○ | ○08 | 3.30 | 1.2 | 0.8 | 8.50 | 5.6 | |||
| avy H | 490R-08T316M-PH | ●○ | ○○ | ○ | ● | ○ | ○○ | ○ | ○08 | 3.30 | 0.6 | 1.6 | 8.50 | 5.6 | ||
| He P | 490R-140408M-PH | ●○ | ○○ | ○○ | ● | ○○ | ○○ | ○○ | ●○ | ○ | ○14 | 3.90 | 2.0 | 0.8 | 13.80 | 10.3 |
| 490R-140420M-PH | ●○ | ○○ | ○○ | ● | ○○ | ○○ | ○○ | ●○ | ○ | ○14 | 3.90 | 0.9 | 2.0 | 13.80 | 10.3 | |
| t | 490R-08T304M-PL | ○○ | ● | ○ | ○ | ○ | ○ | ○08 | 3.30 | 1.5 | 0.4 | 8.50 | 5.6 | |||
| Ligh PL | 490R-08T308M-PL | ○○○ | ○●○ | ○ | ○○ | ● ○ | ○○ | ○ | ○○ | ○08 | 3.30 | 1.2 | 0.8 | 8.50 | 5.6 | |
| 490R-140408M-PL | ○○ | ● | ○○ | ○○ | ○ ● | ○ | ○○ | ○ | ○14 | 3.90 | 2.0 | 0.8 | 13.80 | 10.3 | ||
| 490L-140408M-PM | ● | ○ | ○ | ○ | ○ | ● | 14 | 3.90 | 2.0 | 0.8 | 13.80 | 10.3 | ||||
| 490R-08T308M-PM | ○○ | ○●○ | ○ | ○ | ● ○ | ○○ | ○ | ○ | ○08 | 3.30 | 1.2 | 0.8 | 8.50 | 5.6 | ||
| 490R-08T312M-PM | ○○ | ○●○ | ○ | ○ | ● ○ | ○○ | ○ | ○ | ○08 | 3.30 | 0.9 | 1.2 | 8.50 | 5.6 | ||
| dium M | 490R-08T316M-PM | ○○ | ○●○ | ○ | ○ | ● ○ | ○○ | ○ | ○ | ○08 | 3.30 | 0.6 | 1.6 | 8.50 | 5.6 | |
| Me P | 490R-140408M-PM | ○○ | ○● | ○○ | ● | ○○ | ○○○ | ○○ | ●○ | ○ | ○14 | 3.90 | 2.0 | 0.8 | 13.80 | 10.3 |
| 490R-140412M-PM | ○○ | ● | ○○ | ○○ | ○ | ○○ | ●○ | ○ | ○14 | 3.90 | 2.0 | 1.2 | 13.80 | 10.3 | ||
| 490R-140416M-PM | ○○ | ● | ○○ | ○○ | ○ | ○○ | ●○ | ○ | ○14 | 3.90 | 1.2 | 1.6 | 13.80 | 10.3 | ||
| 490R-140420M-PM | ○○ | ○● | ○○ | ● | ○○ | ○○ | ○○ | ●○ | ○ | ○14 | 3.90 | 0.9 | 2.0 | 13.80 | 10.3 |
- = First choice = Good choice
