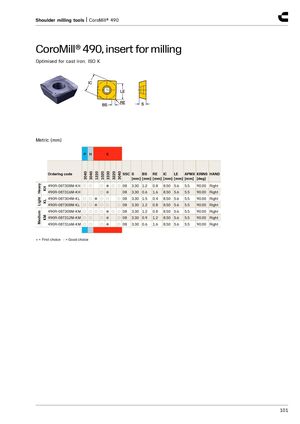

CoroMill® 490, insert for milling
Optimised for cast iron, ISO K
Metric (mm)
P H K
| Ordering code | SSC S | BS RE | IC | LE APMX KRINS HAND | ||
| [mm] [mm] [mm] [mm] [mm] [mm] | [deg] | |||||
| 490R-08T308M-KH | 08 | 3.30 1.2 | 0.8 | 8.50 5.6 | 5.5 | 90.00 Right |
| 490R-08T316M-KH | 08 | 3.30 0.6 | 1.6 | 8.50 5.6 | 5.5 | 90.00 Right |
| 490R-08T304M-KL | 08 | 3.30 1.5 | 0.4 | 8.50 5.6 | 5.5 | 90.00 Right |
| 490R-08T308M-KL | 08 | 3.30 1.2 | 0.8 | 8.50 5.6 | 5.5 | 90.00 Right |
| 490R-08T308M-KM | 08 | 3.30 1.2 | 0.8 | 8.50 5.6 | 5.5 | 90.00 Right |
| 490R-08T312M-KM | 08 | 3.30 0.9 | 1.2 | 8.50 5.6 | 5.5 | 90.00 Right |
| 490R-08T316M-KM | 08 | 3.30 0.6 | 1.6 | 8.50 5.6 | 5.5 | 90.00 Right |
- = First choice = Good choice
