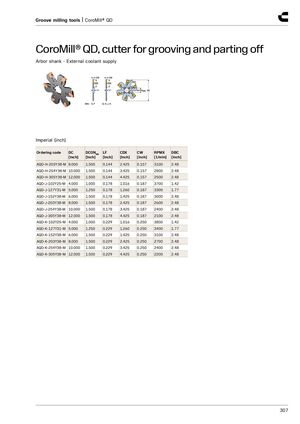

CoroMill® QD, cutter for grooving and parting off
Arbor shank - External coolant supply
Imperial (inch)
| Ordering code | DC [inch] | DCONMS [inch] | LF [inch] | CDX [inch] | CW [inch] | RPMX [1/min] | DBC [inch] |
| AQD-H-203Y38-M | 8.000 | 1.500 | 0.144 | 2.425 | 0.157 | 3100 | 2.48 |
| AQD-H-254Y38-M | 10.000 | 1.500 | 0.144 | 3.425 | 0.157 | 2800 | 2.48 |
| AQD-H-305Y38-M | 12.000 | 1.500 | 0.144 | 4.425 | 0.157 | 2500 | 2.48 |
| AQD-J-102Y25-M | 4.000 | 1.000 | 0.178 | 1.016 | 0.187 | 3700 | 1.42 |
| AQD-J-127Y31-M | 5.000 | 1.250 | 0.178 | 1.260 | 0.187 | 3300 | 1.77 |
| AQD-J-152Y38-M | 6.000 | 1.500 | 0.178 | 1.425 | 0.187 | 3000 | 2.48 |
| AQD-J-203Y38-M | 8.000 | 1.500 | 0.178 | 2.425 | 0.187 | 2600 | 2.48 |
| AQD-J-254Y38-M | 10.000 | 1.500 | 0.178 | 3.425 | 0.187 | 2400 | 2.48 |
| AQD-J-305Y38-M | 12.000 | 1.500 | 0.178 | 4.425 | 0.187 | 2100 | 2.48 |
| AQD-K-102Y25-M | 4.000 | 1.000 | 0.229 | 1.016 | 0.250 | 3800 | 1.42 |
| AQD-K-127Y31-M | 5.000 | 1.250 | 0.229 | 1.260 | 0.250 | 3400 | 1.77 |
| AQD-K-152Y38-M | 6.000 | 1.500 | 0.229 | 1.425 | 0.250 | 3100 | 2.48 |
| AQD-K-203Y38-M | 8.000 | 1.500 | 0.229 | 2.425 | 0.250 | 2700 | 2.48 |
| AQD-K-254Y38-M | 10.000 | 1.500 | 0.229 | 3.425 | 0.250 | 2400 | 2.48 |
| AQD-K-305Y38-M | 12.000 | 1.500 | 0.229 | 4.425 | 0.250 | 2200 | 2.48 |
