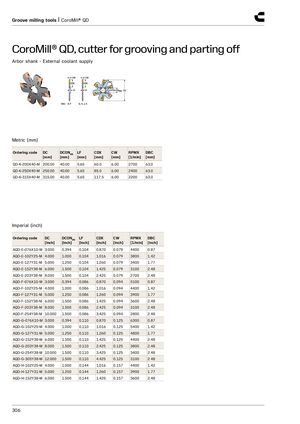

CoroMill® QD, cutter for grooving and parting off
Arbor shank - External coolant supply
Metric (mm)
| Ordering code | DC | DCONMS | LF | CDX | CW | RPMX | DBC |
| [mm] | [mm] | [mm] | [mm] | [mm] | [1/min] | [mm] | |
| QD-K-200X40-M | 200.00 | 40.00 | 5.65 | 60.0 | 6.00 | 2700 | 63.0 |
| QD-K-250X40-M | 250.00 | 40.00 | 5.65 | 85.0 | 6.00 | 2400 | 63.0 |
| QD-K-315X40-M | 315.00 | 40.00 | 5.65 | 117.5 | 6.00 | 2200 | 63.0 |
Imperial (inch)
| Ordering code | DC [inch] | DCONMS [inch] | LF [inch] | CDX [inch] | CW [inch] | RPMX [1/min] | DBC [inch] |
| AQD-E-076X10-M | 3.000 | 0.394 | 0.104 | 0.870 | 0.079 | 4400 | 0.87 |
| AQD-E-102Y25-M | 4.000 | 1.000 | 0.104 | 1.016 | 0.079 | 3800 | 1.42 |
| AQD-E-127Y31-M | 5.000 | 1.250 | 0.104 | 1.260 | 0.079 | 3400 | 1.77 |
| AQD-E-152Y38-M | 6.000 | 1.500 | 0.104 | 1.425 | 0.079 | 3100 | 2.48 |
| AQD-E-203Y38-M | 8.000 | 1.500 | 0.104 | 2.425 | 0.079 | 2700 | 2.48 |
| AQD-F-076X10-M | 3.000 | 0.394 | 0.086 | 0.870 | 0.094 | 5100 | 0.87 |
| AQD-F-102Y25-M | 4.000 | 1.000 | 0.086 | 1.016 | 0.094 | 4400 | 1.42 |
| AQD-F-127Y31-M | 5.000 | 1.250 | 0.086 | 1.260 | 0.094 | 3900 | 1.77 |
| AQD-F-152Y38-M | 6.000 | 1.500 | 0.086 | 1.425 | 0.094 | 3600 | 2.48 |
| AQD-F-203Y38-M | 8.000 | 1.500 | 0.086 | 2.425 | 0.094 | 3100 | 2.48 |
| AQD-F-254Y38-M | 10.000 | 1.500 | 0.086 | 3.425 | 0.094 | 2800 | 2.48 |
| AQD-G-076X10-M | 3.000 | 0.394 | 0.110 | 0.870 | 0.125 | 6300 | 0.87 |
| AQD-G-102Y25-M | 4.000 | 1.000 | 0.110 | 1.016 | 0.125 | 5400 | 1.42 |
| AQD-G-127Y31-M | 5.000 | 1.250 | 0.110 | 1.260 | 0.125 | 4800 | 1.77 |
| AQD-G-152Y38-M | 6.000 | 1.500 | 0.110 | 1.425 | 0.125 | 4400 | 2.48 |
| AQD-G-203Y38-M | 8.000 | 1.500 | 0.110 | 2.425 | 0.125 | 3800 | 2.48 |
| AQD-G-254Y38-M | 10.000 | 1.500 | 0.110 | 3.425 | 0.125 | 3400 | 2.48 |
| AQD-G-305Y38-M | 12.000 | 1.500 | 0.110 | 4.425 | 0.125 | 3100 | 2.48 |
| AQD-H-102Y25-M | 4.000 | 1.000 | 0.144 | 1.016 | 0.157 | 4400 | 1.42 |
| AQD-H-127Y31-M | 5.000 | 1.250 | 0.144 | 1.260 | 0.157 | 3900 | 1.77 |
| AQD-H-152Y38-M | 6.000 | 1.500 | 0.144 | 1.425 | 0.157 | 3600 | 2.48 |
