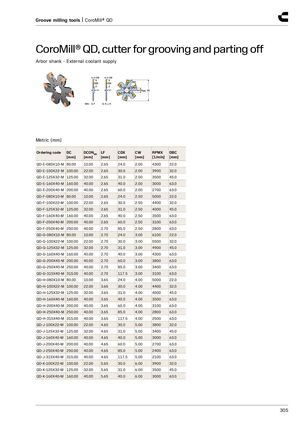

CoroMill® QD, cutter for grooving and parting off
Arbor shank - External coolant supply
Metric (mm)
| Ordering code | DC [mm] | DCONMS [mm] | LF [mm] | CDX [mm] | CW [mm] | RPMX [1/min] | DBC [mm] |
| QD-E-080X10-M | 80.00 | 10.00 | 2.65 | 24.0 | 2.00 | 4300 | 22.0 |
| QD-E-100X22-M | 100.00 | 22.00 | 2.65 | 30.0 | 2.00 | 3900 | 32.0 |
| QD-E-125X32-M | 125.00 | 32.00 | 2.65 | 31.0 | 2.00 | 3500 | 45.0 |
| QD-E-160X40-M | 160.00 | 40.00 | 2.65 | 40.0 | 2.00 | 3000 | 63.0 |
| QD-E-200X40-M | 200.00 | 40.00 | 2.65 | 60.0 | 2.00 | 2700 | 63.0 |
| QD-F-080X10-M | 80.00 | 10.00 | 2.65 | 24.0 | 2.50 | 5000 | 22.0 |
| QD-F-100X22-M | 100.00 | 22.00 | 2.65 | 30.0 | 2.50 | 4400 | 32.0 |
| QD-F-125X32-M | 125.00 | 32.00 | 2.65 | 31.0 | 2.50 | 4000 | 45.0 |
| QD-F-160X40-M | 160.00 | 40.00 | 2.65 | 40.0 | 2.50 | 3500 | 63.0 |
| QD-F-200X40-M | 200.00 | 40.00 | 2.65 | 60.0 | 2.50 | 3100 | 63.0 |
| QD-F-250X40-M | 250.00 | 40.00 | 2.70 | 85.0 | 2.50 | 2800 | 63.0 |
| QD-G-080X10-M | 80.00 | 10.00 | 2.70 | 24.0 | 3.00 | 6100 | 22.0 |
| QD-G-100X22-M | 100.00 | 22.00 | 2.70 | 30.0 | 3.00 | 5500 | 32.0 |
| QD-G-125X32-M | 125.00 | 32.00 | 2.70 | 31.0 | 3.00 | 4900 | 45.0 |
| QD-G-160X40-M | 160.00 | 40.00 | 2.70 | 40.0 | 3.00 | 4300 | 63.0 |
| QD-G-200X40-M | 200.00 | 40.00 | 2.70 | 60.0 | 3.00 | 3800 | 63.0 |
| QD-G-250X40-M | 250.00 | 40.00 | 2.70 | 85.0 | 3.00 | 3400 | 63.0 |
| QD-G-315X40-M | 315.00 | 40.00 | 2.70 | 117.5 | 3.00 | 3100 | 63.0 |
| QD-H-080X10-M | 80.00 | 10.00 | 3.65 | 24.0 | 4.00 | 5000 | 22.0 |
| QD-H-100X22-M | 100.00 | 22.00 | 3.65 | 30.0 | 4.00 | 4400 | 32.0 |
| QD-H-125X32-M | 125.00 | 32.00 | 3.65 | 31.0 | 4.00 | 4000 | 45.0 |
| QD-H-160X40-M | 160.00 | 40.00 | 3.65 | 40.0 | 4.00 | 3500 | 63.0 |
| QD-H-200X40-M | 200.00 | 40.00 | 3.65 | 60.0 | 4.00 | 3100 | 63.0 |
| QD-H-250X40-M | 250.00 | 40.00 | 3.65 | 85.0 | 4.00 | 2800 | 63.0 |
| QD-H-315X40-M | 315.00 | 40.00 | 3.65 | 117.5 | 4.00 | 2500 | 63.0 |
| QD-J-100X22-M | 100.00 | 22.00 | 4.65 | 30.0 | 5.00 | 3800 | 32.0 |
| QD-J-125X32-M | 125.00 | 32.00 | 4.65 | 31.0 | 5.00 | 3400 | 45.0 |
| QD-J-160X40-M | 160.00 | 40.00 | 4.65 | 40.0 | 5.00 | 3000 | 63.0 |
| QD-J-200X40-M | 200.00 | 40.00 | 4.65 | 60.0 | 5.00 | 2700 | 63.0 |
| QD-J-250X40-M | 250.00 | 40.00 | 4.65 | 85.0 | 5.00 | 2400 | 63.0 |
| QD-J-315X40-M | 315.00 | 40.00 | 4.65 | 117.5 | 5.00 | 2100 | 63.0 |
| QD-K-100X22-M | 100.00 | 22.00 | 5.65 | 30.0 | 6.00 | 3900 | 32.0 |
| QD-K-125X32-M | 125.00 | 32.00 | 5.65 | 31.0 | 6.00 | 3500 | 45.0 |
| QD-K-160X40-M | 160.00 | 40.00 | 5.65 | 40.0 | 6.00 | 3000 | 63.0 |
